Review

Multiple Object Tracking in Deep Learning Approaches: A Survey

1

Department of Computer Science and Engineering, Sejong University, Seoul 143-747, Korea

2

Department of Information Technology, FPT University, Ho Chi Minh City 70000, Vietnam

*

Author to whom correspondence should be addressed.

Academic Editors: Amir Mosavi and Jungong Han

Received: 13 July 2021 / Revised: 22 September 2021 / Accepted: 23 September 2021 / Published: 2 October 2021

Abstract

Object tracking is a fundamental computer vision problem that refers to a set of methods proposed to precisely track the motion trajectory of an object in a video. Multiple Object Tracking (MOT) is a subclass of object tracking that has received growing interest due to its academic and commercial potential. Although numerous methods have been introduced to cope with this problem, many challenges remain to be solved, such as severe object occlusion and abrupt appearance changes. This paper focuses on giving a thorough review of the evolution of MOT in recent decades, investigating the recent advances in MOT, and showing some potential directions for future work. The primary contributions include: (1) a detailed description of the MOT's main problems and solutions, (2) a categorization of the previous MOT algorithms into 12 approaches and discussion of the main procedures for each category, (3) a review of the benchmark datasets and standard evaluation methods for evaluating the MOT, (4) a discussion of various MOT challenges and solutions by analyzing the related references, and (5) a summary of the latest MOT technologies and recent MOT trends using the mentioned MOT categories.

1. Introduction

The recent advances in deep learning [1,2,3] and the availability of computing power [4,5] has revolutionized several fields, such as computer vision and natural language processing (NLP). Object detection [6,7] is a well-developed field in computer vision. Object tracking is usually the next process after object detection, which receives an initial set of detected objects, puts a unique identification (ID) for each of the initial detections, and then tracks the detected objects as they move between frames.

Multiple Object Tracking (MOT) is a subgroup of object tracking, which is proposed to track multiple objects in a video and represent them as a set of trajectories with high accuracy. However, object tracking usually has one big challenge when the same object is not given the same ID in all the frames, which is usually caused by ID switching and occlusion. ID switching is a phenomenon in which an object X with an existing ID A is assigned a different ID B, which can be caused by many scenarios, such as the tracker assigning another object Y the ID A as it resembles object X. Another problem is occlusion, which is when another object obscures one object partly or totally during a short period.

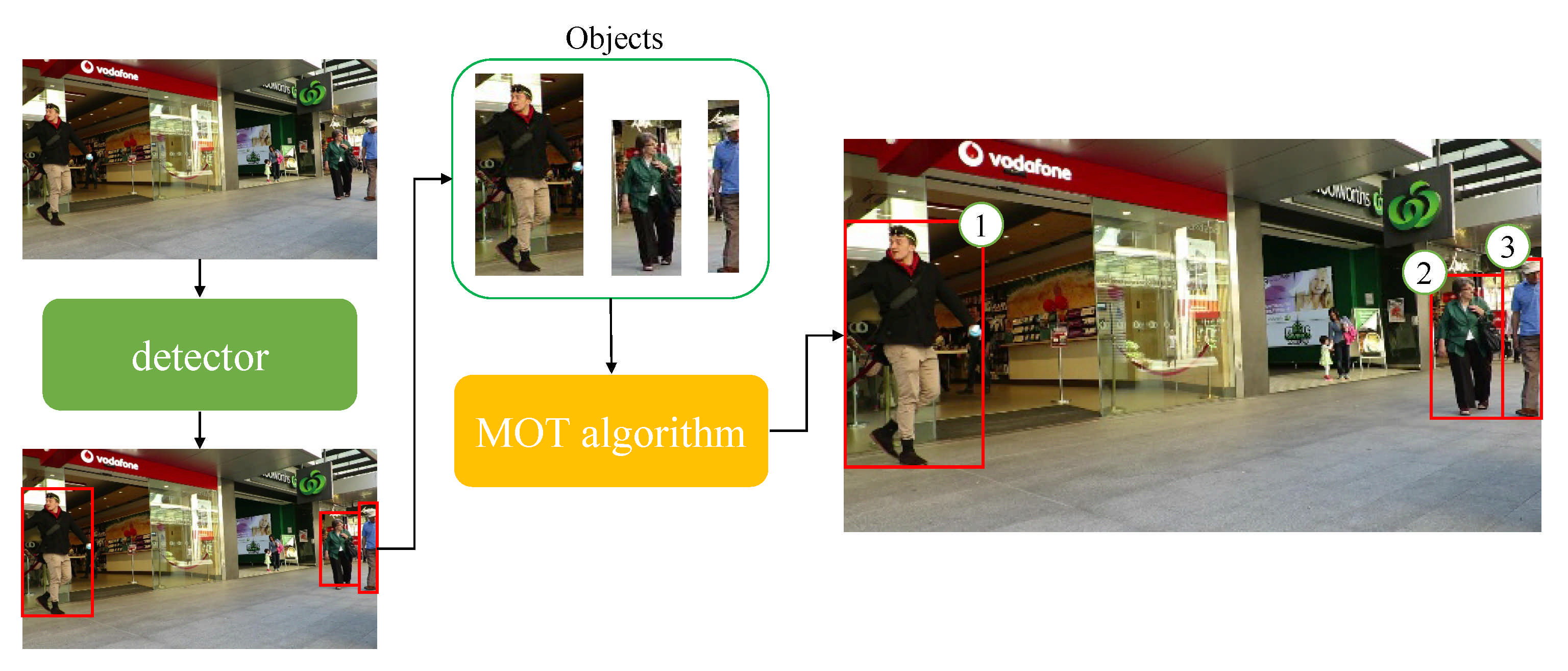

Figure 1 illustrates the MOT process. Initially, the objects in the current frame are detected by a detector. The objects are then tracked when they are fed into an MOT algorithm. After that, Figure 2 visualizes the object tracking process of multiple tracked objects from the current frame to the following frame. The two figures introduce how MOT aims to accurately track a large number of objects in a single frame.

In recent years, numerous novel MOT studies have been proposed to address the existing tracking problems, such as real-time tracking, ID switching, and occlusion. In addition, deep learning has been increasingly applied to MOT to improve its performance and robustness. Table 1 describes, in detail, the contributions of some of the previous surveys on the MOT topic. Overall, each survey focused on a specific problem of the MOT. Most lately, Pal et al. focused on the deep learning method and explained detection and tracking separately [9], so that the readers can easily concentrate on their part of interest. However, due to the description of many detection-related parts, the description of tracking is insufficient.

On the other hand, Ciaparrone et al. reviewed deep learning-based MOT papers that were published in the past three years [10]. They described online methods that perform in real-time and batch methods that can use global information and compare the experimental results. However, they focused only on the MOT benchmarks and provided no comparison for other benchmarks. In another review, Luo et al. described MOT methodology in two categories [11], and the evaluation focused on the PETS2009-S2L1 sequence of the PETS [12] benchmark. Finally, Kalake et al. reviewed MOT papers during the last 5 years [13]. Although they covered many aspects of the MOT, it was difficult to determine the exact evaluation for each tracking method due to the limited evaluation.

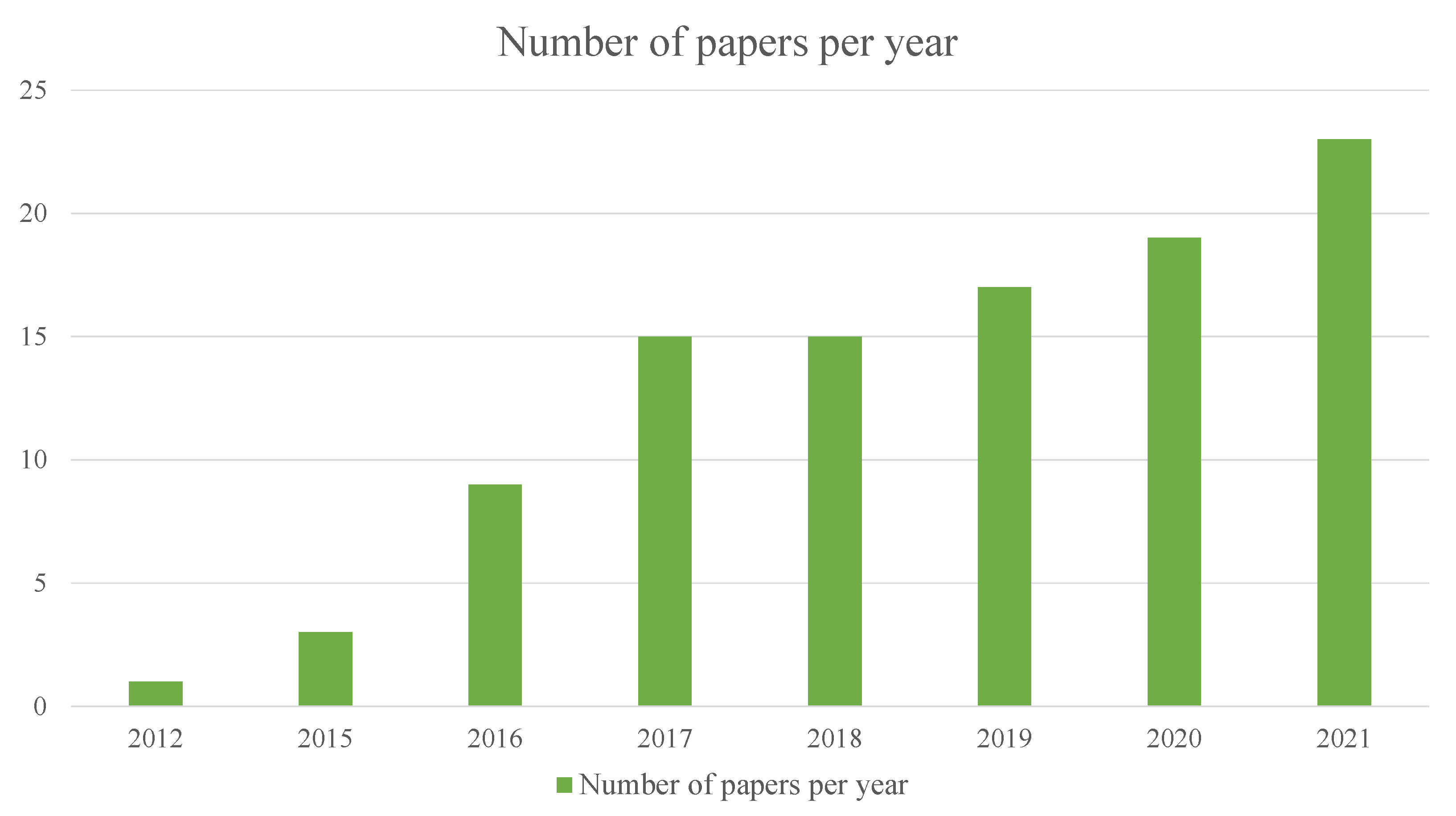

Figure 3 shows the total number of papers investigated in this survey. Overall, there is an increasing trend in the number of MOT papers, which introduced various deep learning-based MOT frameworks, new hypotheses, procedures, and applications, although previous surveys partly addressed the tracking and particularly the MOT topic. However, some existing parts of the MOT have not been covered in those reviews, for instance, (1) most of the surveys concentrated on the detection part rather than the tracking part [9,10], and (2) a limited number of benchmarks were mentioned [11]. As a result, a comprehensive survey on recent MOT work is meaningful for stakeholders and researchers who want to integrate MOT into the existing systems or start new MOT research. This survey summarizes the previous work and covers many aspects of MOT. The main contributions are as follows.

  • Describe the most basic techniques applied to the MOT.

  • Categorize MOT methods and organize and explain the techniques used with deep learning methods.

  • Include state-of-the-art papers and discuss MOT trends and challenges.

  • Describe various benchmark datasets and evaluation metrics of the MOT.

2. Methodology

The method used to survey this paper summarizes according to TRANSPARENT REPORTING of SYSTEMATIC REVIEWS and META-ANALYSES (PRISMA) [14]. Figure 4 shows the process of how papers are collected for review. The papers used in the analysis were searched for only between 2017 and 2021. The search title used terms, such as 'multiple object tracking' and 'multiple object tracking deep learning' and included deep learning-based papers among the listed papers on the MOT challenge site. We included journals and conference papers, for a total of 150 papers. Some of the papers were removed because they did not used deep learning techniques; thereby, the number of papers became 100. Next, three overlapping papers were excluded; thus, finally resulting in 97 papers.

3. Multiple Object Tracking Analysis

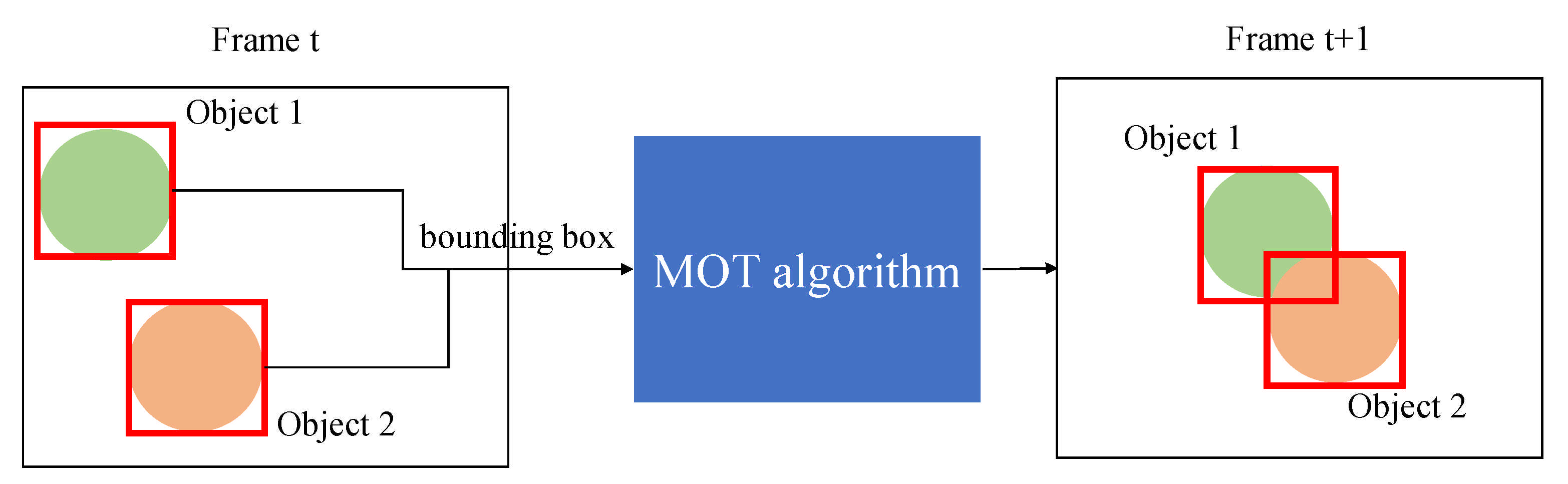

Figure 5 shows that most of the MOT algorithms track the location of the object in the next frame using the information of the detected objects from the current frame.

Before reviewing the MOT research, Section 3.1 describes the MOT concepts, reviews two main problems that are mainly addressed in MOT, which are occlusion and id switching. After that, Section 3.2 shows common concepts that are frequently mentioned in the MOT research. Finally, Section 3.3 provides an in-depth overview of the previous MOT research.

3.1. Multiple Object Tracking Main Challenges

This section describes two common problems in MOT, which are occlusion and id switch. After that, four common deep learning approaches that are widely implemented in MOT, Recurrent Neural Network (RNN), Deep Convolutional Neural Network (CNN), and Long Short-Term Memory (LSTM), and Attention, are described. Finally, Intersection Over Union (IoU), which is a common evaluation metric for object detection and object tracking is explained.

3.1.1. Occlusion

This section describes occlusion, which is a primary problem that usually happens during the MOT implementation. When the MOT algorithm is implemented only by the cameras without using other sensor data, it is difficult for the algorithm to track the location of the objects when they overlap each other [15]. Occlusion occurs when a part of one object obscures a part of another object in the same frame. It is even more challenging to solve the occlusion if one object completely occludes the other object. As a result, the object information from different frames is required to recognize different objects in the same location.

Figure 6 illustrates an example of occlusion. Occlusion is still among the existing challenge of MOT, because when the occlusion happens, it is challenging to predict the object's current position with only a simple tracking algorithm [16,17]. Occlusion mainly occurs in the frames that have many objects, which are solved by extracting appearance information using CNN [18,19,20] or using the graph information to find global attributes [21]. Huo's paper increased the resolution and appearance feature extraction resolution and robustness and then performed tracking by associating this data with the detection result [18].

Milan et al. model improved performance by using a robust association strategy that integrates speed, acceleration, and appearance models [19]. Tian's model allocates costs, including appearance and motion directions, when each node in the network calculates the probability that new nodes are the same ID [20]. Global attributes are the properties found in the graph method for long-term tracking.

3.1.2. ID Switch

A tracklet is the calculation of the path of an object in a short period, usually under 10 frames [22,23], which is used by the tracking algorithm to predict the object's position in the next frame. As shown in Figure 7, when the same object is not included in the predicted tracklet in the current frame, this is considered an object that disappears in the current frame and is assigned the new ID. The object outside of the path is given a new ID, where the problem of changing the ID of the same object in the entire video is called ID Switching. A unique ID is assigned to an object by the tracker during the tracking process, but the ID will be removed if the tracker decides that the object is no longer within the frame.

3.2. Multiple Object Tracking Main Concepts

Some concepts commonly appear in the latest MOT research, such as RNN, LSTM, CNN, IoU, and Attention, The motivation for using ML is because it is challenging to learn the high-dimensional data with only simple algorithms. Although complex non-ML pattern recognition algorithms can be applied to perform the tracking algorithm, because using a simple method to estimate the location of an object, an estimation result frequently occurs as a lost object [24], and thus many researchers have used deep learning approaches to extract more robust features.

3.2.1. Recurrent Neural Network (RNN)

RNN performs classification or prediction by learning sequential data from deep learning algorithms. CNN models used the filters within convolutional layers to transform data before being passed to the next layer. On the other hand, RNN models make used of the activation functions from other data points in the sequence to create the following output. As a result, RNN can process temporal data well. Thus, the current output results are influenced by the results of the previous time sequence, and the hidden layer acts as a type of memory that remembers features to send features to the next sequence using features from the input layer and the previously hidden layer. The hidden layer receives weights from the input layer and generates an output through an activation function [25].

3.2.2. Long Short-Term Memory (LSTM)

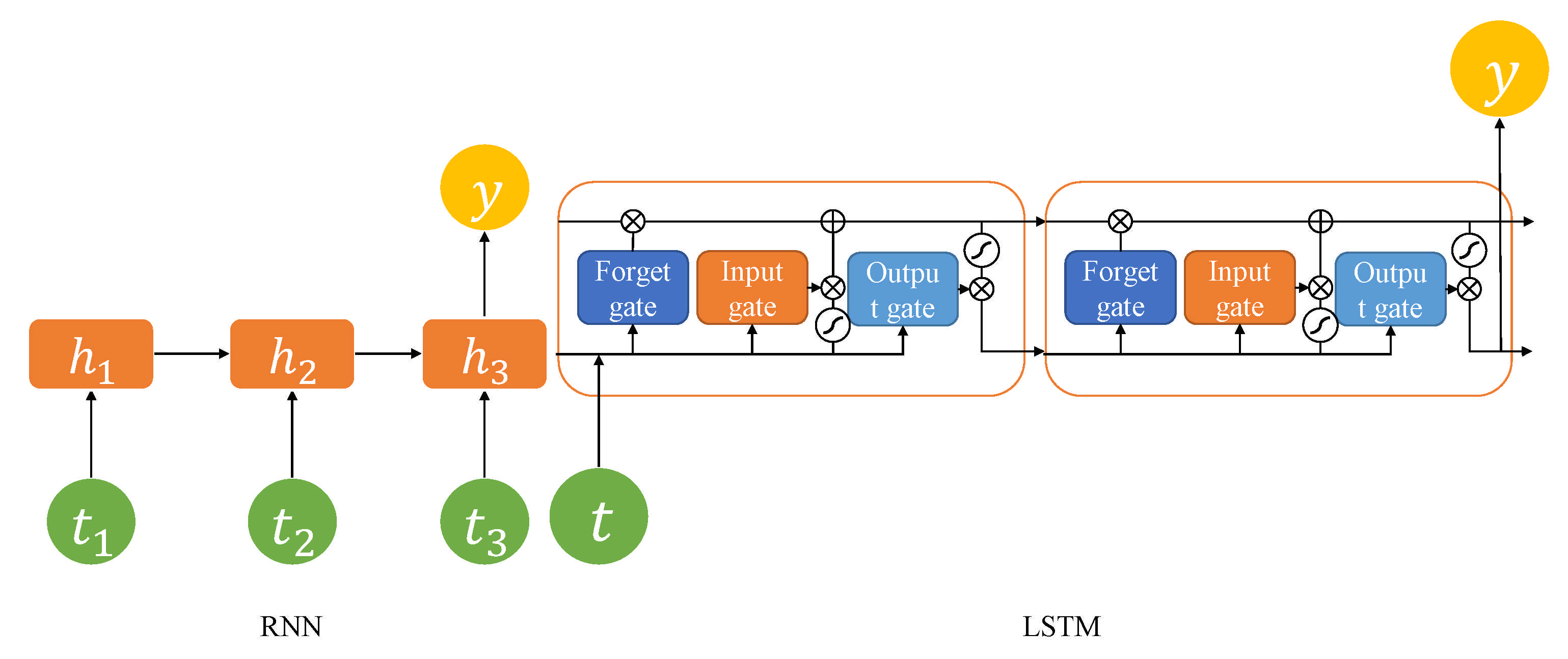

LSTM [1] is a deep learning model derived from RNN. One of the main problems of RNN is that it fails to deliver important gradient information from the model's output to the layers near the model's input. A vanishing gradient means that the weight of the top layers has little effect on the output layer because the gradient vanishes further as the model becomes deeper [2]. LSTM has a structure similar to that of RNN but has two states in the hidden layer, called short-term states and long-term states, and LSTM has that input data passes through the hidden layer with a short-term state and a long-term state and generates output data through the output layer.

To solve gradient vanishing, LSTM is introduced with a forget gate that decides whether to remember the last information in RNN. The structure of the LSTM is shown in Figure 8. LSTM controls the current node's state information with three gates (input, forget, and output). The Forget gate determines whether to store old state information, the input gate determines whether to store new information being entered, and the output gate controls the output of updated cells. LSTM is used in both feature and sequence data in MOT.

3.2.3. Convolutional Neural Network (CNN)

CNN [2,26,27] is a deep learning-based structure that is most commonly used to interpret visual imagery. It accepts the input as a multi-channeled image. On the other hand, RNN [25] is proposed to recognize patterns in data sequences, such as text, genomes, handwriting, the spoken word, and numerical times series data. Most research has used CNN to extract object appearance [4,28,29,30,31,32], which is the category of papers including CNN during the tracking process to extract features or using CNN as backbone during the detection.

3.2.4. Intersection over Union (IoU)

IoU is one of the evaluation methods shown in Figure 9. An orange circle is an object, the green bounding box indicates the ground truth annotation, and the red bounding box represents the predicted result. IoU is the intersection of the actual and detected result values divided into all actual and detected results areas. In the tracking part, some researchers used this to predict the tracklet. Bewley et al. used the Hungarian algorithm [17] with IoU [33].

The Hungarian algorithm is usually applied to solve the assignment problem by placing the predicted bounding boxes, and the detected bounding boxes in rows and columns of a cost matrix and allocates detection pairs with minimal cost by calculating the cost of having a row and column pairs. This method achieved better performance than the original IoU based tracker, which proved that a standard detector would not always obtain a good result.

In most cases, the used of a robust detector for the object tracking remarkably improved the tracking performance [4,10]. However, Bochinski suggested that any robust detector could be a problem if the detector predicted false-positives or false-negatives in the real world [34]. In this case, the track quality was greatly degraded due to a huge number of ID switch cases and fragments. Therefore, the authors solved the ID switch problem through a false-positive filtering process. The experimental results showed that the ID switch and fragments were significantly reduced on the VisDrone-VDT2018 test set. In addition, the model achieved a high Frames Per Second (FPS) rate, which indicated that it could process many frames per second.

3.2.5. Attention

Attention [35] is a technique that increases the performance of a model by making it focus on a specific vector, and this maps the query and key-value pairs to the output by input three vectors, Query (Q), Key (K), and Value (V). Attention and CNN [36,37,38] highlights a specific part of the feature map or describes the image by image captioning [39]. Image captioning methodology highlights some part of the node, making the feature map one-dimensional vector by flattening instead of using a fully connected layer. In RNN, attention is used to prevent important information loss when compressing input by encoders, and Transformer is used for encoders and decoders.

3.3. Techniques Used in the Paper about Multiple Object Tracking

In Section 3.1, this paper describes the methodology used in previous studies and presents the different methodologies for MOT as shown in Table 2.

3.3.1. Appearance Learning

In the first row of the table, one can see appearance learning algorithms. Appearance learning is a methodology that tracks objects by extracting features from CNN, mainly using the detectors. Zhang et al. proposed two approaches [90] of appearance learning, which are CNN features and the cascaded correlation filter. Wei et al. applied appearance, shape, and motion to decide the matching result between trajectory and detection [24], which prevents missed detection by including spatial information, such as appearance.

Fagot-Bouquet et al. used a sliding window to find the relationship between the already estimated trajectory and detection and made function E use the appearance, motion, and interaction in the association problem [42]. Sliding window is an algorithm that moves the array element by a specific length and finds the maximum value. Ning et al. used Long Short-Term Memory (LSTM) [41], which makes a regression to enable the prediction of tracking locations in convolutional layers and LSTM [91].

Wang et al. proposed TrackletNet, which combines trajectory and appearance information [40], which obtains competitive Multi-Object Tracking Accuracy (MOTA) through occlusion processing, the generation of tracklets using epipolar geometry, and robustness to appearance features. Epipolar geometry is that objects have a geometric correlation. Zamir et al. achieved high MOTA and Multiple Object Tracking Precision (MOTP) in PET 09 sequences using optimization using a method of combining motion and appearance information and associating time-integrated data with Generalized Minimum Clique Graphs (GMCG) [43].

Kim et al. proposed a multi hypothesis tracking framework [92] based on both appearance and behavior using Bilinear LSTM. Multiple Hypothesis Tracking solves the multidimensional allocation problem through the Breadth-First Search (BFS) process. Sun et al. solved the ID switching problem in occlusion [28] to increase the multi-object tracking accuracy and achieved an average 6.3 frame rate per second.

Azimi et al. used AerialMPTNet [93] that model uses appearance, temporal, and graphical information, and which includes Siamese Neural Network, LSTM, and GNN. Siamese networks are consist of two sub-networks. Two input images are put into each sub-network to create two outputs and calculate distance through two outputs. Zhou et al. conducted research on defensive and unmanned driving [94] and proposed a Fusion-Residual Predictive Network (FRPN) framework to measure the degree of risk on the road.

Zhang et al. proposed a high-resolution Siamese network [95] to address the low-resolution feature extraction of patches, which shares information of multiple resolutions and maintains high-resolution features by connecting convolutional streams in parallel, and they also attempted to improve the features of CNN as an attention mechanism. Tang et al. proposed an MDSPF method [96], shared convolutional units, and particle filter methods. Particle filters used scale-adaptive particle filters for robustness. The particle filter recursively predicts the state of the object based on prior information.

3.3.2. Occlusion Handling

The second technique is occlusion handling. Ray and Chakraborty separated foreground and background from video sequence [44]. Adding the current frame, they detected objects in the foreground, which refines the object region, and last, they tracked objects using the Kalman filter [16]. Xiang et al. tracked using Markov Decision Processes (MDPs) [46] for online tracking, which manages an object's birth, death, appearance, and disappearance to track objects, and this increased at least 7% of MOTA compared to other studies.

Kutschbach et al. applied theGaussian Mixture Probability Hypothesis Density (GMPHD) filter [45] for tracking objects, which was also combined with Kernelized Correlation Filters (KCF). This model sacrifices high sensitivity to increase the runtime and false positivity, which obtained competitive results on the UA-DETRAC benchmark [97]. Zhao et al. combined the Correlation Filter tracker with CNN features to enable re-identification (ReID) [29] when tracked objects are lost, which achieved a low tracking time of 0.07 with a competitive MOTA and high MOTP.

Hidayatullah et al. tracked using angles and grids to solve blurring or occlusion problems in fast motion [98]. Xia et al. used CNN and correlation filter [99] to solve occlusion, pose changing, and movement.

3.3.3. Detection and Prediction

Detection and prediction compare the detection results with the prediction results. Scheidegger et al. combined the PMBM filter result to the detector [49], which uses 3D vector information for tracking, and PMBM filters predict world coordinates and achieved high FPS, and minimizing ID switching. Milan et al. used instance-based segmentation for their tracking method [54], which used superpixel association with the low-level image, and they proposed a new conditional random field (CRF) that uses high-level information and low-level superpixel information.

Sanchez-Matilla et al. used low confidence, and high confidence from target detections [53] and also proposed the Probability Hypothesis Density Particle (PHDP) Filter framework, which framework makes reduction computation cost. Zhang et al. used Faster R-CNN in the detection part [52], which extracts appearance features for re-identification and which cluster for trajectories.

Li et al. solved the traditional translation invariance to Using ResNet as a backbone in Siamese networks [50], which predicts using a feature map, Siamese Region Proposal (Siam RPN) blocks, and Bounding box regression. Furthermore, the network reduces computational costs and redundant parameters using the correlation layer based on the online model.

Ren et al. proposed Collaborative Deep Reinforcement Learning (C-DRL) [51] as shown in Figure 10, and which solved occlusion, missed, or false detection with a reinforcement learning approach. C-DRL first used detection object location in the current frame, and they predicted the next frame object location and combined this in the Decision network. Even if the agent is blocked, they can update the location of the agent. Moreover, if candidate agents have noise, they will be ignored, have a new object location, update the new agent.

Madasamy et al. proposed Deep YOLO v3 [100], which includes a regression method for object location probability, which uses CNN with upsampling to detect the small object. Dao and Fremont used 3D information for MOT [101], and which uses the Hungarian algorithm for track-by-detection. Yin et al. proposed a CNN-based light neural network [102] in tracking-by-detection, which tracks using a graph matching process.

Song et al. tracked objects from self-driving vehicles to Deepsort using YOLOv3 [103]. In YOLOv3, they removed 32-times subsampling and added four-times subsampling for traffic signs. Padmaja et al. proposed a human activity tracking system for intelligent video [104], which uses the Deep landmark model and YOLOv3 detector. Chou et al. proposed Mask-Guided Two-Streamed Augmentation Learning (MGTSAL) [105] to complement the information of instance semantic segmentation.

Zhou et al. proposed a multi-scale network in Synthetic Aperture Radar (SAR) images [106] and selected Region Proposal Network (RPN) for classification and regression. Liu et al. detected 3D skeleton key points to used YOLOv4 [107], which used the Meanshift target tracking algorithm that converts to spatial RGB and CNN for recognition. Xie et al. utilized affine transformations [108] to spatial information models using CNN, which also refines the bounding box using a multi-task loss function including affine transformations and used Non-Maximum Suppression (NMS).

Shao et al. made used of autoencoder networks [109], motion generation networks, and location detection networks to generate trajectories. In Nobis et al., the proposed model fused sensor data [110], which is radar data, with Camera Radar Fusion Net (CRF-Net) to detect objects. Wu et al. composed the multi-level same-resolution compress (MSC) feature using a network, such as DSNet, to refine it using encoding and channel reliability measurement (CRM) to form a tracking framework [111]. Zhu et al. proposed a tracking framework [112] using vehicle fine-grained vehicle classification and detection.

3.3.4. Computational Cost Minimization

The Weng and Kitani model is for 3D multi-object tracking and approaches the 3D object detector using by LiDAR point cloud [55], and this model combines the 3D Kalman filter and Hungarian algorithm with data association, which obtains increased MOTA while maintaining real-time performance. Tang et al. proposed the Subgraph Multicut model and heuristic solution using the Kernighan–Lin algorithm [59]. To solve the occlusion problem, Chu et al. used the spatial-temporal attention mechanism (STAM) model [58] that uses shared CNN features and ROI-pooling.

Voigtlaender et al. proposed Track R-CNN, which extracts temporally enhanced image features using CNN and relabel KITTI and MOT challenge for instance segmentation [57]. This benchmark was released. Yu et al. proposed a framework that incorporates GCD and GTE, called RelationTrack [56], which is shown in Figure 11. GCD is a module that separates by sense and by ReID to avoid contradictions that optimize during learning. The GTE module combines transformer encoders with deformable attention for global information consideration. GTE can capture global information with limited amounts of resources. They attempted computational cost-minimizing.

Avola et al. used Multi-Stream architecture with Faster R-CNN [113] backbone and used Deep Association Metric (Deep SORT), which includes Simple Online and Real-time Tracking. Zhou et al. proposed a framework for the real-time security surveillance of smart IoT systems [114], and proposed a tracking algorithm for lightweight models by combining MTCNN and YOLO. In Hossain and Lee, they developed an association metric by integrating it into Deep SORT [115], which combines Kalman filtering and deep learning for tracking in small flight drones with limited computing power.

3.3.5. Motion Variations

Bochinski et al. tracked by reducing complexity and computational cost through IoU trackers [60], and this approach is tracking-by-detection that relies on detector performance. IoU tracker to make possible 100K fps. Ruchay et al. proposed a locally adaptive correlation filter with CNN [65], which adapted scene frame information into filters. Sharma et al.'s model is for urban driving using a single camera, which complements the error in detection using pairwise costs using 3D cues [62] and performs in real-time.

Whin et al. proposed a kernelized correction filter (KCF) tracking [61] method with three modules integrated to increase tracking accuracy at high speed in real-time streaming condition environments. First, they tracked failure detection and search multiple windows using re-tracking. This paper also analyzed the motion vector for the searching window. Keuper et al. used bottom-up motion segmentation [63] as a way to group point trajectories with multi-object tracking through clustering of top-down detect tracking.

Chen and Ren used Multi-Appearance Local Control segmentation (MALC) [64] for segmenting merge detection, and proposed Track-Oriented Multiple Hypothesis Tracking (TOMHT) to improved speed and performance. Their main technique is motion variations.

He et al. proposed a tracking framework [116] in an end-to-end manner for using unlabeled data, and this framework includes Reprioritized Attentive Tracking with Tracking-By-Animation. Lee and Kim proposed a Feature Pyramid Siamese Network (FPSN) [117] to extract multi-level feature information and to add Spatio-temporal motion features to consider both appearance and motion information.

3.3.6. Appearance Variations, Drifting and Identity Switching

Zhu et al. extracted detection features by using CNN, calculating affinity using spatial attention [32], which also applied temporal attention to LSTM to use a Dual Matching Attention Network (DMAN). Wojke et al. solved the occlusion problem using CNN [4], a deep application descriptor for existing SORT algorithms to solve the re-identification problem.

In Xiang et al., they used three architectures for their affinity model: A-Net, M-Net, and Metric-Net [67]. A-Net extracts their appearance, and M-Net extracts Motion. Metric-Net uses three-channel CNN-LSTM networks, which share weights. For comparison similarity, Metric-Net uses triplet loss in their framework. A-Net consists of CNN and bounding box regression. CNN performs with VGG-16 Net for using a pre-trained model and then fine-tunes it with MOT and person identity datasets.

M-Net has two modules, that is, LSTM and a Bayesian filtering network (BF-Net). After predicting trajectory and position, they put this into BF-NET and Metric-Net. Metric-Net inference with data association using Hungarian algorithms, and they put this to BF-Net. BF-Net estimates their trajectory. Yoon et al. used appearance models based on joint inference networks [66] in multi-object environments where features need to compare with other objects.

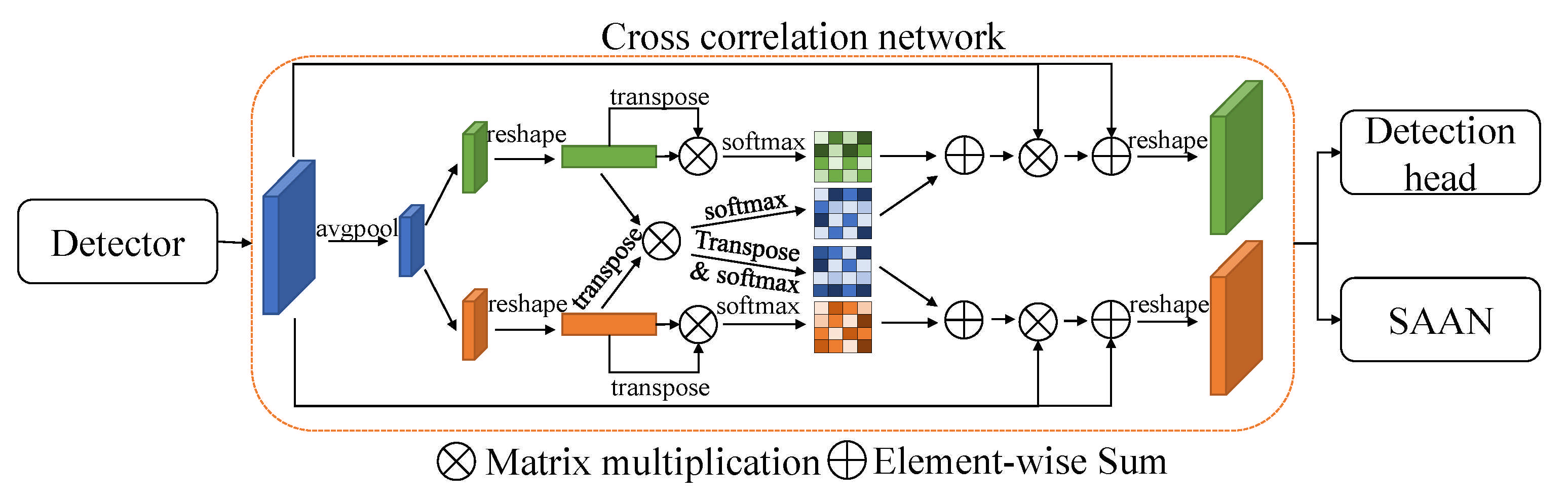

To learn special features, Liang et al. proposed a cross-correlation network, which exploits the correlation of CNN features [31]. The cross-correlation network from this model is shown in Figure 12. This paper addresses the ReID feature using scale-aware attention networks and approaches appearance variations, drifting, and identity switching.

Dike and Zhou proposed a Deep Quadruplet network (DQN) [118] that uses a new loss function for feature space. Gomez-Silva et al. computed affinity using an appearance preference model [119]. The loss function used in this model is the triple loss function.

Li et al. proposed a tracking model capable of hierarchical time series prediction and used constrained mix sequential Monte Carlo (CMSMC) [120] to solve the re-id problem. This paper consists of two modules: a behavior recognition module and a state evolution module. Lv et al. proposed a depthwise separable convolution neural network (DS-CNN) [121], which included pointwise convolution(P-Conv2D) and depthwise convolution (D-Conv2D). Xu et al. proposed the Group Feature Selection Method for Discriminative Correlation Filters (GFS-DCF) [122] to select group features at the channel and spatial dimensions.

3.3.7. Distance and Long Occlusions Handling

There are two approaches the distance and long occlusion handling. Based on single CNNs, Gan et al. combined cues of multiple features to assign IDs to tracked targets and stores them [68] in memory for model updates. If the object is missing, the target is removed, and the target is tracked until target-out. This framework is in Figure 13. Kampker et al. proposed a framework [69] in urban scenarios with grid-based techniques and object-based techniques using Lidar raw data. Shahbazi et al. used 3D information to determine the speed and estimate the location of trackers with detection and tracking [123].

3.3.8. Detection and Target Association

In the detection and target association approach, Bewley et al. had a simple process [33] for object tracking. They used only the Kalman filter and Hungarian Algorithm to predict motion. Wang et al. proposed an appearance embedding model for data connection with single-shot detectors using the Joint Learning of Detection and Embedding (JDE) [70] method, which are for real-time tracking, and this speed was 22–40 FPS. Figure 14 presents the comparison between JDE and other detectors.

Baisa applied the Gaussian mixture Probability Hypothesis Density (GM-PHD) [71] filter to visual similarity CNN to track multiple targets in video sequences, and which uses a cost-minimizing approach to CNN appearance features and bounding boxes using Hungarian algorithms. The GM-PHD filter is divided into two steps. One is prediction, and the other is the update.

Following the linear Gaussian model, they initialize velocity to zero to remove prior knowledge, which sets the target state independently of survival and detection probabilities. Visual-similarity CNN is constructed with two steps. First, detect patch from frame

k 1

and k, and concatenate after resizing. That input patch is put into visual-similarity CNN. Second, they get similarity confidence from binary cross-entropy loss.

Pegoraro and Rossi used cloud sequence by Mm-wave radars and used the extended Kalman filter [124], and the platform was evaluated in an edge-computing system. In Liu, tracking using deep learning-based detectors was performed using the Deep Associated Elastic Tracker (DAE-Tracker) [125]. Wen used faster-CNN and Hungarian matching algorithms to track objects [126]. Ullah and Alaya Cheikh proposed an inDuctive Sparse Graphic Model (DSGM) [21], a graph model that reduced computational complexity by minimizing connectivity in the multi-target scene, resulting in competitive results compared to other models.

3.3.9. Affinity

Affinity solves the problem of ID switching and occlusion by comparing the application of the detected object and the feature of the tracked object. Ju et al. proposed a process using a novel affinity model and appearance features [72], which model performs track fragmentation processing when the object is initialized to connect occluded objects. KC et al. proposed a graph-based model and approached the problem of allocating identical or distinct labels to the detection of graphs [75].

Each graph assigns a unique label if the spatio-temporal or appearance cues are the same in detection pairs. Leal-Taixe et al. used the Siamese Network approach [76], which includes the same two models in one. When two detectors belong to the same tracking entity, Siamese networks estimate from CNNs.

Milan et al. proposed a tracking method [19] based on recurrent neural networks for the state of changing by time, and which found that LSTM can learn a one-to-one assignment. The one-to-one constraint ensures that the same measurement is not assigned to multiple targets in joint data connection for the task of uniquely classifying measurements in data association. Yoon et al. used the Siamese network [73] to track discriminative appearance features through appearance matching.

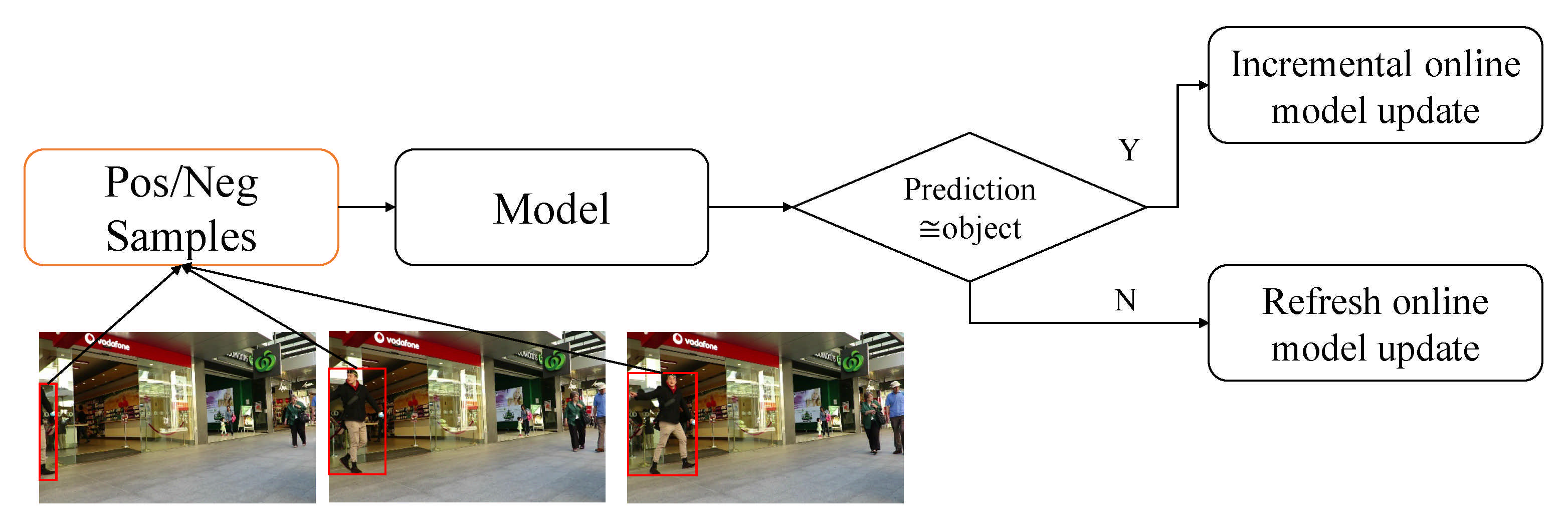

Bae and Yoon improved MOTA using an online detector of information and online transfer learning [127] and tracklet confidence to update the online multi-object tracking framework [74]. Tracklet confidence is measured using length, occlusion, and effectiveness of the track, and transfer learning used a pre-trained model for training a model using many datasets.

This paper used appearance, shape, and motion models to set tracklet elements. A tracklet is divided into two ways. One is a high-confidence tracklet, which is locally linked to the HC-association (High Confidence association) phase, and another is a low-confidence tracklet, which is globally linked to the LC-association (Low Confidence association) phase. For the distinction of multiple objects, relating tracklets with appearance modeling is essential, and, for this, they proposed a deep appearance model and adapted online transfer learning. The discriminative Deep Appearance Model has a simple layer because of learning complexity, which the method calculates for minimizing positive objects and maximizing negative objects.

Xu et al. used augmented Lagrangian in Discriminative Correlation Filters (DCF) [128] to focus on channel selection. Huang et al. focused on the detector to small object detection and class imbalance and, thus, used a Hierarchical Deep High-resolution network (HDHNet) [129] for a prediction network. They used a new loss function that combines focal loss and GIoU loss.

Chen et al.'s system is an autonomous system [130], which used 3D information from 3D point clouds [131] and relation conv for pair of objects correlation. Wang et al. proposed unsupervised learning with a Siamese correlation filter network [132], which uses a multi-frame validation scheme and cost-sensitive loss and which have real-time speed using unsupervised learning.

Wu et al. used dimension adaptation correction filters (DACF) to extract features using CNN from conventional correction filters (CF) [133]. Yang et al. model proceeds in real-time, and they proposed a tracking method using long-term and short-term features [134], which optimizes the position of the object using boundary box regression using the cosine window of the correlation filter.

Mauri et al. conducted research on two approaches for smart mobility [135]: monodepth2 and MADNet. This research exploited the extended Kalman filter to improved the SORT approach in tracking. Akhloufi et al. used deep reinforcement learning and IoU to increase tracking accuracy for tracking in Unmanned Aerial Vehicles (UAVs) [136]. Huo et al. accurately extracted feature information when the target is obscured, based on the Reid pedestrian re-identification network (RFB) [18], solved call detection, and linked to distinguish targets.

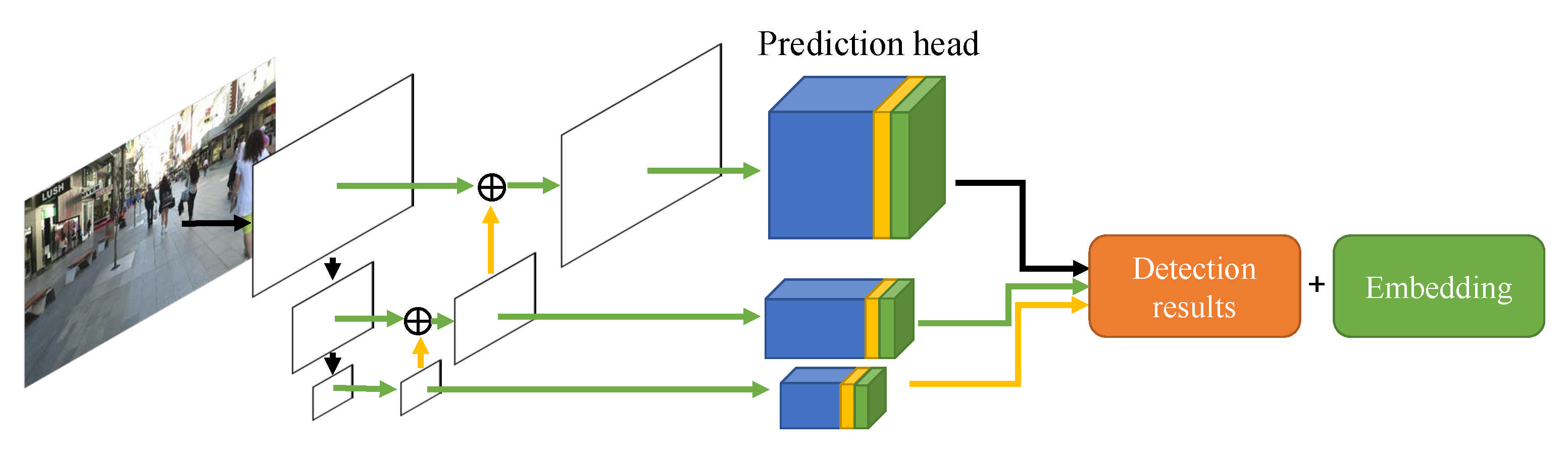

Tian et al. combined the learning tracker [20] structured for multi-target tracking and segmentation with the segmentation algorithm, resulting in accurate segmentation results.

3.3.10. Tracklet Association

Some research needs to associate tracklet when tracking objects, and we show an example in Figure 15. Jiang et al.'s paper estimated observations by combining 2D features and 3D features in multiple views [77], such as multi-camera systems. Tracklets are formed using particle filters are modeled by graphs, and integrated into the full track. Wu et al. used track-based multi-camera tracking (T-MCT) [80] with clustering and proposed distributed online framework, including T-MCT re-identification (Re-id).

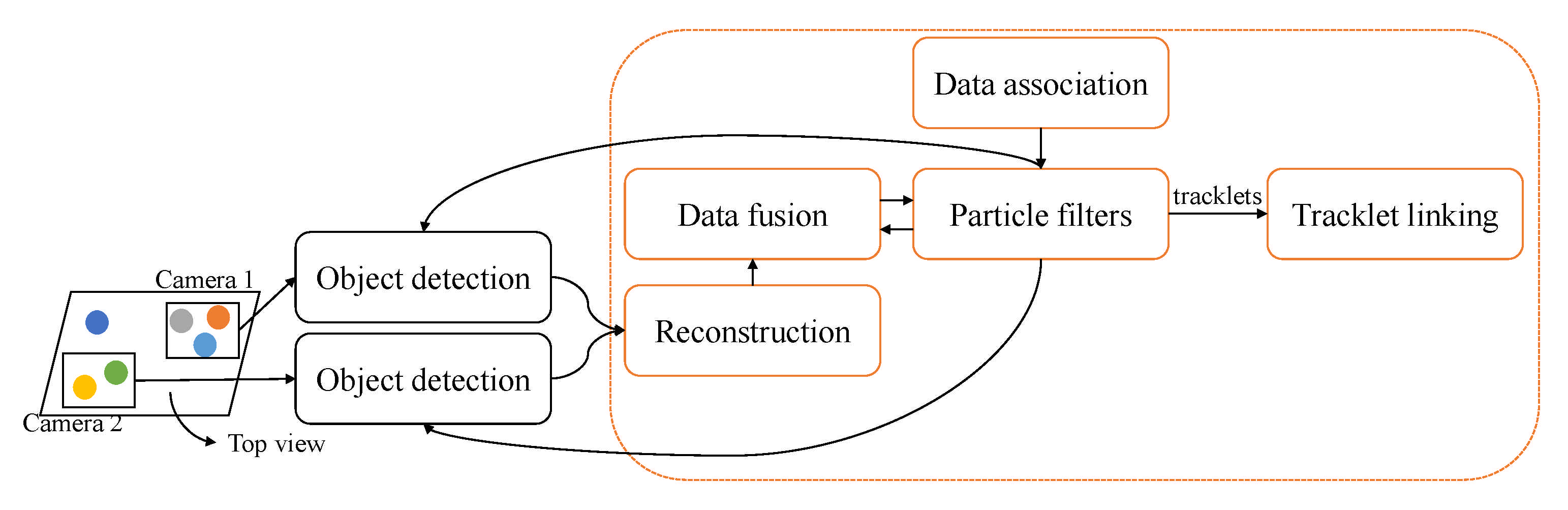

Le et al. proposed target tracking between cameras as a synchronized overlapping camera network environment [79]. The decision algorithm performs the tracking, which allows the camera to track the target in the case of occlusion in each view. Kieritz et al. proposed Multiple-Instance Learning (MIL) [81] for the training appearance model, which uses the Integrate Channel Features (ICF) in fast-detected pedestrians.

Scheel et al. used multiple high-resolution radar in their method [82] that has a Labeled Multi-Bernoulli filter to track vehicles, which also implements the Sequential Monte Carlo (MC) Algorithm. Weng et al. predicted and tracked using multi-agent interaction, which uses Graph Neural Networks (GNN) [78] for multi-agent interaction and also uses the diversity sampling function to avoid duplicated trajectories. GNN is used to visualize relationships using graphs, which is used for the association between objects in tracking.

3.3.11. Automatic Detection Learning

This section deals with automatic detection learning. Schulter et al. proposed a data association network [83] using backpropagation, which tracks over the cost of pairwise association. In Son et al., the proposed tracker was an end-to-end Quadruplet Convolutional Neural Network (CNN) [85] as shown in Figure 16, where the tracker exploits quadruple loss and gives constraints that places it closer to adjacent detectors.

Lee et al. used ensemble network construct CNN with Lucas Kanade Tracker(LKT) [86] in motion detection. Their model has robust multi-class multi-object tracking (MCMOT) with a Bayesian filtering framework. Chen et al. solved occlusions in track prediction using candidates to handle unreliable detection in existing tracks [84]. Scoring was carried out by using an R-FCN to select the best among many candidates during tracking.

Voeikov et al.'s goal was tracking real-time processing in high-resolution video [137]. To solve this problem, they used an auto-referee system and the occlusion problem by using CNN with the appearance feature, which also uses the spatial attention mechanism of insertion and location. Jiang et al. proposed multi-agent deep reinforcement learning (MADRL) [138], which uses a learning method that uses Q-Learning (QL) to treat other agents as part of the current agent's environment.

3.3.12. Transformer

Xu et al. proposed TransCenter [87], which consists of the tracking and detection. Each part includes a Deformable Encoder and Decoder. As this paper describes in Section 3.3.4, Yu et al. used a transformer in GTE [56], which included a deformable attention to transformer encoder. GTE uses defensible attention to overcome slow speeds and limited resolution during learning and obtains robust embedding for the subsequent association. Sun et al. used "object query" [88] generated with learned object detectors and "track query" about objects from previous frames. After a bounding box using each query prediction, an IoU match generates a final set of objects.

Zeng et al. introduced MOTR [89], which created a transformer and DEtection TRansformer (DETR) [139]. MOTR models long-range temporal relations through a continuous query delivery mechanism. In Belyaev et al., they used the Deep Object Tracking model with Circular Loss Function (DOTCL) [140], a loss function that takes into account boundary box overlap and orientation, and which uses the Transformer Multi-head Attention architecture.

We organized the MOT methodology from Table 2. We present MOT algorithms in six categories as shown in Figure 17.

3.3.13. IoU

Bochinski et al. assumed that the detector can detect all objects, resulting in a small gap in detection [60]. In this case, the objects in the current frame and the previous frame have high overlap IoU. However, there are disadvantages to IoU. In Huang et al., the two boxes cannot reflect similarity if the objects in the previous frame do not intersect with those in the current frame [129]. In addition, not all objects have the same location, even if they have the same IoU. Therefore, to address this, in this paper, they complement it by using Generalized Intersection over Union (GIoU) to compute the similarity between two objects in IoU.

3.3.14. CNN

As we can see in Section 3.1, CNN is often used for extract appearance similar with feature map. Most research uses this feature for tracking enhancement [28,29,30]. Ren et al. used CNN in their prediction network [51]. The network trains the movement of objects. Zhao et al. combined Correlation Filter (CF) and CNN [29]. For feature extraction, Scheidegger et al. used CNN for detection [49]. Zhu et al. used the attention module when they extract features from CNN [32] and used a matching layer after CNN. Wojke et al. used the wide residual network in CNN [4] for deep appearance descriptor.

Liang et al. adapted scale-aware network (SAAN) [31] through CNN. In Wang et al., they used CNN with the Embedding model to extract appearance [70]. Baisa also used CNN for visual computing similarity from the patch [71]. Yoon et al. proposed a Siamese network into CNN [73]. Bae and Yoon model used Discriminative Deep Representation Learning from CNN [74]. Yin et al. used CNN for feature extraction in the associate network [102]. When the associate network finish, they matched the network using by hyper-target graph. Other research is discussed in Section 3.3.

3.3.15. LSTM

In MOT, LSTM is mainly used to estimate motion after feature extraction. Ning et al. used LSTM to temporal construct [41] a detected object. In Zhu et al., this research used Bi-directional Long-Short Term Memory (Bi-LSTM) [32] after extracting features. Xiang et al.'s model used M-Net, which includes LSTM to the Affinity model [67]. For data association [19], Milan et al. used LSTM. Azimi et al. combined a LSTM module with a GCNN module [93].

3.3.16. Attention

Attention is used to both CNN and sequence models, like LSTM and RNN. Attention is often used to emphasizes certain nodes in networks. In Chu et al., they used spatial attention [58] when they extracted features. Yu et al. proposed a global attraction [56] that considers inter-pixel interactions, unlike previous models. Zhu et al. used Dual Matching Attention [32], which uses both spare and temporary attraction. Liang et al. used scale-aware attention [31] when they were extracting features in a multi-scale environment.

3.3.17. Siamese Network

Attention is used in both sequence data and CNN, which is the same for extracting sensitive information. In Leal-Taixe et al., they used a CNN-based Siamese network [76], where they exploited pixel values and optical information. Yoon et al. compared the appearance from Siamese network [73]. Azimi et al. applied the Siamese network in the model they used for accurate tracking AerialMPTNet [93]. Wang et al. used the Siamese network in the Unsupervised learning method [132]. To address the lack of features, Lee and Kim proposed a Feature pyramid Siamese network (FPSN) [117].

3.3.18. Kalman Filter

The Kalman filter is suitable to solve the problem of low memory in computational environments. Therefore, this method is ideal for real-time processing systems, such as autonomous driving. Bewley et al. used the most common method [33] of the Kalman filter and the Hungarian algorithm. Weng and Kitani also followed Bewley et al.'s method [33], which performed in the 3D system [55]. Ray and Chakraborty used only the Kalman filter in their tracking system [44]. Pegoraro and Rossi used the Kalman filter, classifier, and radar point cloud in their tracking system [124]. In Hossain and Lee, they combined CNN and the Kalman filter [115] for tracking.

4. Multiple Object Tracking Benchmarks

Although there are various MOT-related benchmarks, this paper focuses on the MOT benchmark [8,141] and KITTI [142] benchmark, because they are both well-developed benchmarks and have been used to evaluate the performance of many state-of-the-art MOT models [141,142]. The examples of these benchmarks are displayed in Figure 18. Each benchmark will be addressed in detail in the following subsections.

4.1. KITTI Benchmark

The KITTI benchmark includes a set of vision tasks collected using an autonomous driving platform. KITTI includes' Car', 'Van', 'Truck', 'Pedestrian', 'Person (sitting)', 'Cyclist', 'Tram', and 'Misc' classes. The main goal of the KITTI object tracking task is to calculate object tracklets only for the 'Car' and 'Pedestrian' classes. In total, the KITTI object tracking benchmark consists of 21 training sequences and 29 test sequences with a variety of data, such as left color image, right color images, Velodyne point clouds, GPS/IMU data, camera calibration metrics, L-SVM reference, and Region reference. In the Velodyne point clouds case, it contains manually labeled 3D points. All of the collected data and calibration were done by experts.

4.2. MOT Benchmark

The MOT benchmark has had many versions, which include MOT15 [8], MOT16 [141], MOT17, and others. Compared to other benchmarks, the MOT benchmark contains various sequences that are challenging for the MOT. Each sequence has fundamental information, such as frame number, identity number, bounding box left, bounding box top, bounding box width, bounding box height, confidence score, x position, y position, and z position [8].

4.2.1. MOT15

MOT15 combines both the Performance Evaluation of Tracking and Surveillance (PETS) [12], and KITTI benchmarks. The weather condition of the training dataset includes cloudy, sunny, and night, yet the test dataset does not have a night weather dataset. The training set has 11 sequences, 5500 frames, 500 tracks, 39,905 boxes, and 7.3 density, while the testing set contains 11 sequences, 5783 frames, 721 tracks, 61,440 boxes, and 10.6 density. The dataset resolution is varied from 640 * 480 to 1920 * 1080.

4.2.2. MOT16

After MOT 15, MOT16 was introduced with some new improvements, which included the annotation of personal gestures. The training set has seven sequences, 5316 frames, 512 tracks, 110,407 boxes, and a density of 20.8, whereas the test set includes seven sequences, 5919 frames, 830 tracks, 182,326 boxes, and a density of 30.8. Moreover, with two videos excluded, the entire dataset was constructed from the start without the involvement of any other datasets. Finally, the MOT16 dataset has more weather conditions than the MOT15, which include cloudy, night, sunny, indoor in the training dataset, and cloudy, night, sunny, shadow, and indoor in the test dataset.

4.2.3. MOT17

MOT17 uses the same video as MOT16 but has a different data structure. They focus on more accurate ground truth from MOT16 benchmark raw data. MOT17 has 21 sequences in the training set and the test set, with 15,948 frames, 1638 for the training set, 336,891 for the box, 21.1 for the Density, 17,757 for the test set, 2355 for the track, and 31.8 for the Density.

5. Evaluation of Multiple Objects Tracking Benchmark Datasets

Although there are various evaluation metrics for the MOT, MOTA, and MOTP [143] are the two most important metrics that show a tracker's characteristics and can be calculated for evaluating MOT performance. This section describes how the previous state-of-the-art systems were evaluated using those evaluation metrics on the two benchmark datasets (KITTI and MOT).

Firstly, MOTA combines three types of tracking errors, as described below.

M O T A = 1 t m t + f p t + m m e t t g t

where t is a frame.

m t

is the respectively misses for frame t.

f p t

is the number of false positives.

m m e t

is the number of mismatch errors for frame t.

g t

is the total number of objects at time t.

Secondly, MOTP can be computed to check whether the tracker performed properly or not.

M O T P = i , t d i , t t c t

c t

is the number of matches found for time t.

d i , t

is the distance between the object and corresponding hypothesis.

Table 3 shows that for the KITTI benchmark, RRC-IITH [62] achieved the highest MOTP of 85.73 and ML of 2.77. PC3T model [144] also obtained good performance with the MOTA of 88.8, MT of 80, and high fps at 222. On the other hand, AB3DMOT [145] did not report the ID switch, and FR was low at 15.

The performances of the previous systems on the MOT benchmark datasets are shown in Table A1 from the Appendix A. For the MOT15 dataset, FairMOT [148] demonstrated the highest performance in terms of the evaluation metrics with MOTA of 59, IDF1 of 62.2, MT of 45.6, and ML of 11.5. The SORT [33] algorithm is a widely accepted real-time tracking algorithm, because it showed an impressive component speed of 260 Hz and small FN of 11.7. STAM [58] achieved the best IDSw 348, whereas EA-PHD-PF [53] obtained the highest MOTP of 75.3 and Frag of 1269. DAN [28] showed that it had the best FP of 1290.25.

For the MOT16 benchmark dataset, RelationTrack [56] achieved high performance with MOTA of 75.6, MOTP of 80.9, FN of 34214, and MT of 43.1. EA-PHD-PF [53], on the other hand, focused on the detector, which got the lowest FP of 407. oICF [81] obtained the best IDSw of 380, while JDE [70] achieved the highest ML of 16.7 and FPS of 30.3. FairMOT [148] performed well and achieved the highest IDF1 of 70.4 in the MOT16 benchmark.

For the MOT17 benchmark dataset, the RelationTrack [56] model continued to show the best performance among the existing models, with MOTA of 75.6, MOTP of 80.9, IDF1 of 75.8, MT of 43.1, and FN of 34,214. GAN et al. implemented long occlusion handling [68], which obtained IDSw of 560, FP of 7912, and Frag of 1212.

6. MOT Trends

Although object detection and object tracking have been studied for a long time, the recent development of deep learning and computer vision has led to more advanced models being introduced in order to solve some existing challenges that the previous models failed to address. Nevertheless, there remain several challenges in the MOT that need to be addressed. Figure 19 shows various MOT trends that are attracting the research community.

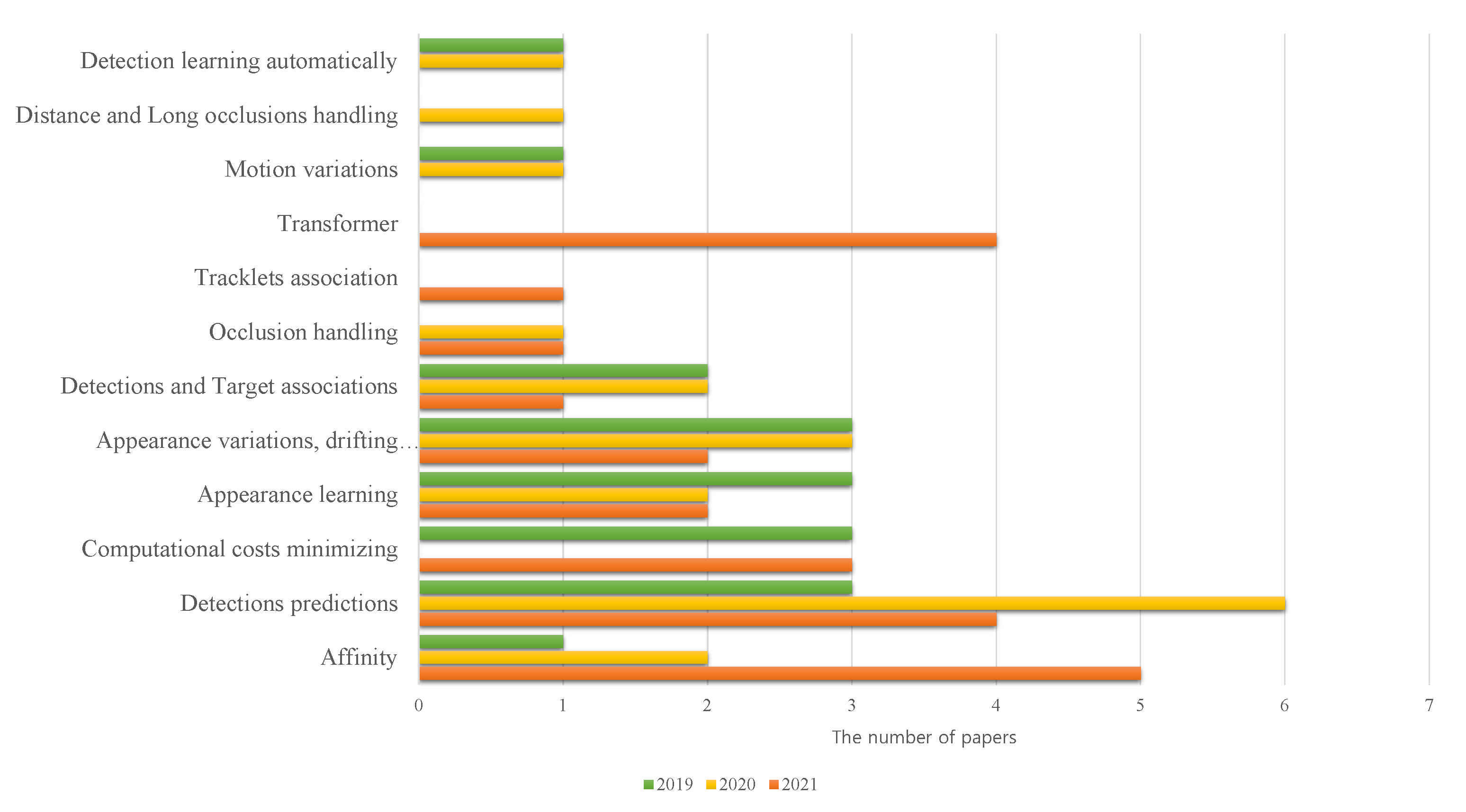

Figure 19 and Table 4 demonstrates that, in general, detection, appearance, and affinity are the most common trends, which are implemented to solve MOT problems. Detection/prediction is the most common trend lately, which took 32% of the total related research published in 2020. Another interesting trend is affinity, which has witnessed a stable rise since 2019 and becomes the most prevalent MOT trend in 2021. Most MOT research tried to construct a robust detector because it significantly affects the tracking performance. Basic trackers used only the object's location to estimate the direction.

However, as it is challenging to track only this information, tracking with the appearance category was proved to offer better performance and has thus received more attention. Most research from the computational costs minimization trend was used in autonomous driving cars and Internet of Things (IoT) devices [149].

The Kalman filter and Hungarian algorithm are used for speed improvement because they could effectively construct light detectors. Unlike conventional methods that used application features only using CNN, recent methods proposed focusing on essential features through an attention mechanism. A new method that became available in 2021 is the application of the transformer [35]. Even though this category was newly introduced in 2021, it appears that a large number of papers were published.

7. Conclusions

Organizations and research communities worldwide are closely collaborating to revolutionize how visual systems track various moving objects. This research is helpful for readers who are interested in studying the object tracking problem, especially MOT.

Driven by the ongoing developments of object tracking, especially MOT, this study offers a comprehensive view of the field with up-to-date information for (i) MOT's main approaches and the common techniques for each approach, which include state-of-the-art results achieved by the most representative techniques, (ii) benchmark datasets and evaluation methods for the MOT research, and (iii) several challenges in the current MOT research and many open problems to be studied.

In particular, this paper analyzed two main problems of the MOT, which included the occlusion problem and the identity switch problem. Moreover, this review concentrated on studying the latest deep learning-based methods that were proposed to solve those problems efficiently. After that, the standard MOT benchmark datasets and evaluation techniques were listed and discussed in detail. Finally, this survey analyzed the main challenges of MOT and provided potential techniques that can be further studied to cope with the challenges.

Author Contributions

Conceptualization Y.P. and L.M.D.; Data curation L.M.D. and D.H.; Methodology S.L.; Validation S.L.; Visualization D.H.; Supervision H.M.; Writing—original draft preparation, Y.P.; Writing—review and editing, L.M.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

This work was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2020R1A6A1A03038540) and National Research Foundation of Korea (NRF) grant funded by the Korea government, Ministry of Science and ICT (MSIT) (2021R1F1A1046339).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Performance on the MOT benchmark, which includes the MOT15 [8], MOT16 [141], and MOT17 benchmarks.

Table A1. Performance on the MOT benchmark, which includes the MOT15 [8], MOT16 [141], and MOT17 benchmarks.

Benchmark Name Year MOTA MOTP IDF1 IDSw IR IS FM FAF FP FN MT ML Frag Hz FPS Ref.
MOT15 LINF1 2016 40.5 74.9 NA 426 9.4 NA 953 1.4 8401 99,715 10.7 56.1 NA NA NA [42]
DAN 2019 38.3 71.1 45.6 1648.08 NA NA NA NA 1290.25 2700 17.6 41.2 1515.6 6.3 NA [28]
MDP OFL 2015 30.1 71.6 NA 690 NA NA NA NA 8789 33,479 10.4 41.3 1301 0.8 NA [46]
MDP REL 2015 30.3 71.3 NA 680 NA NA NA NA 9717 32422 13 38.4 1500 1.1 NA [46]
2018 32.7 NA 38.9 NA NA NA NA NA NA NA 26.2 19.6 NA NA NA [29]
EA-PHD-PF 2016 53 75.3 NA 776 NA NA NA 1.3 7538 20,590 35.9 19.6 1269 NA NA [53]
C-DRL 2018 37.1 71 NA NA NA NA NA 1.2 7036 30,440 14 31.3 NA NA NA [51]
STAM 2017 34.3 70.5 NA 348 NA NA NA NA 5154 34,848 11.4 43.4 1463 NA NA [58]
CCC 2018 35.6 NA 45.1 457 NA NA 969 NA 10,580 28,508 23.2 39.3 NA NA NA [63]
SORT 2016 33.4 72.1 NA 1001 NA NA NA 1.3 7318 11.7 30.9 NA 1764 260 NA [33]
FairMOT 2020 59 NA 62.2 582 NA NA NA NA NA NA 45.6 11.5 NA 30.5 NA [148]
MOT16 LINF1 2016 40.5 74.9 NA 426 9.4 NA 953 1.4 8401 99,715 10.7 56.1 NA NA NA [42]
EA-PHD-PF 2016 52.5 78.8 NA 910 NA NA NA 0.7 4407 81,223 19 34.9 1321 12.2 NA [53]
C-DRL 2018 47.3 74.6 NA NA NA NA NA 1.1 6375 88,543 17.4 39.9 NA NA NA [51]
STAM 2018 46.0 74.9 NA 473 NA NA NA NA 6895 91,117 14.6 43.6 1422 NA NA [58]
RelationTrack 2021 75.6 80.9 NA 448 NA NA NA NA 9786 34,214 43.1 21.5 NA NA NA [56]
TNT 2019 49.2 NA NA 606 NA NA NA NA 8400 83,702 17.3 40.3 882 NA NA [40]
DMAN 2018 46.1 73.8 NA 532 NA NA NA NA 7909 89,874 17.4 42.7 1616 NA NA [32]
Deep SORT 2017 61.4 79.1 NA 781 NA NA 2008 NA 12,852 56,668 32.8 18.2 NA 20 NA [4]
Deep-TAMA 2021 46.2 NA NA 598 NA NA 1127 NA 5126 92,367 14.1 44 NA NA 2 [66]
CSTrack++ 2020 70.7 NA NA 1071 NA NA NA NA NA NA 38.2 17.8 NA NA 15.8 [31]
2018 44 78.3 NA 560 NA NA NA NA 7912 93,215 15.2 45.7 1212 NA NA [68]
JDE 2019 62.1 NA NA 1608 NA NA NA NA NA NA 34.4 16.7 NA NA 30.3 [70]
oICF 2016 42.8 74.3 NA 380 NA NA NA NA NA NA 10.4 53.1 1397 NA NA [81]
MCMOT HDM 2016 62.4 78.3 NA 1394 NA NA NA 1.7 9855 57,257 31.5 24.2 1318 34.9 NA [86]
MOTDT 2018 47.6 NA NA 792 NA NA NA NA 9253 85,431 15.2 38.3 NA NA 20.6 [84]
FairMOT 2020 68.7 NA 70.4 953 NA NA NA NA NA NA 39.5 19 NA 25.9 NA [148]
MOT17 EB+DAN 2019 53.5 NA 62.3 NA NA NA NA NA NA NA NA NA NA NA NA [28]
RelationTrack 2021 75.6 80.9 75.8 448 NA 7.4 NA NA 9786 34,214 43.1 21.5 NA NA NA [56]
TNT 2019 51.9 NA 58 2294 NA NA NA NA 37,311 231,658 23.5 35.5 2917 NA NA [40]
DMAN 2018 48.2 75.9 NA 2194 NA NA NA NA 26,218 263,608 19.3 38.3 5378 NA NA [32]
2021 50.3 NA 53.5 2192 NA NA NA NA 25,479 252,996 19.2 37.5 NA NA 1.5 [66]
2020 70.6 NA 71.6 3465 NA NA NA NA NA NA 37.5 18.7 NA NA 15.8 [31]
2018 44 78.3 NA 560 NA NA NA NA 7912 93,215 15.2 45.7 1212 NA NA [68]
FairMOT 2020 67.5 NA 69.8 2868 NA NA NA NA NA NA 37.7 20.8 NA 25.9 NA [148]

References

  1. Hochreiter, S.; Schmidhuber, J. Long short-term memory. Neural Comput. 1997, 9, 1735–1780. [Google Scholar] [CrossRef]
  2. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27 June 2016; pp. 770–778. [Google Scholar]
  3. Gui, Y.; Zhou, B.; Xiong, D.; Wei, W. Fast and robust interactive image segmentation in bilateral space with reliable color modeling and higher order potential. J. Electron. Imaging 2021, 30, 033018. [Google Scholar] [CrossRef]
  4. Wojke, N.; Bewley, A.; Paulus, D. Simple online and realtime tracking with a deep association metric. In Proceedings of the 2017 IEEE International Conference on Image Processing (ICIP), Beijing, China, 17–20 September 2017; pp. 3645–3649. [Google Scholar]
  5. Wang, H.; Li, Y.; Dang, L.; Moon, H. Robust Korean License Plate Recognition Based on Deep Neural Networks. Sensors 2021, 21, 4140. [Google Scholar] [CrossRef]
  6. Ren, S.; He, K.; Girshick, R.; Sun, J. Faster r-cnn: Towards real-time object detection with region proposal networks. Adv. Neural Inf. Process. Syst. 2015, 28, 91–99. [Google Scholar] [CrossRef] [PubMed]
  7. Bochkovskiy, A.; Wang, C.Y.; Liao, H.Y.M. Yolov4: Optimal speed and accuracy of object detection. arXiv 2020, arXiv:2004.10934. [Google Scholar]
  8. Leal-Taixé, L.; Milan, A.; Reid, I.; Roth, S.; Schindler, K. MOTChallenge 2015: Towards a Benchmark for Multi-Target Tracking. arXiv 2015, arXiv:1504.01942. [Google Scholar]
  9. Pal, S.K.; Pramanik, A.; Maiti, J.; Mitra, P. Deep learning in multi-object detection and tracking: State of the art. Appl. Intell. 2021, 51, 6400–6429. [Google Scholar] [CrossRef]
  10. Ciaparrone, G.; Sánchez, F.L.; Tabik, S.; Troiano, L.; Tagliaferri, R.; Herrera, F. Deep learning in video multi-object tracking: A survey. Neurocomputing 2020, 381, 61–88. [Google Scholar] [CrossRef]
  11. Luo, W.; Xing, J.; Milan, A.; Zhang, X.; Liu, W.; Kim, T.K. Multiple object tracking: A literature review. Artif. Intell. 2020, 293, 103448. [Google Scholar] [CrossRef]
  12. Ellis, A.; Ferryman, J. PETS2010 and PETS2009 evaluation of results using individual ground truthed single views. In Proceedings of the 2010 7th IEEE International Conference on Advanced Video and Signal Based Surveillance, Boston, MA, USA, 29 August 2010; pp. 135–142. [Google Scholar]
  13. Kalake, L.; Wan, W.; Hou, L. Analysis Based on Recent Deep Learning Approaches Applied in Real-Time Multi-Object Tracking: A Review. IEEE Access 2021, 9, 32650–32671. [Google Scholar] [CrossRef]
  14. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; Prisma Group. Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. PLoS Med. 2009, 6, e1000097. [Google Scholar] [CrossRef] [PubMed]
  15. Dang, L.M.; Min, K.; Wang, H.; Piran, M.J.; Lee, C.H.; Moon, H. Sensor-based and vision-based human activity recognition: A comprehensive survey. Pattern Recognit. 2020, 108, 107561. [Google Scholar] [CrossRef]
  16. Welch, G.; Bishop, G. An Introduction to the Kalman Filter; Technical Report; University of North Carolina: Chapel Hill, NC, USA, 1995. [Google Scholar]
  17. Kuhn, H.W. The Hungarian method for the assignment problem. Nav. Res. Logist. Q. 1955, 2, 83–97. [Google Scholar] [CrossRef]
  18. Huo, W.; Ou, J.; Li, T. Multi-target tracking algorithm based on deep learning. J. Phys. Conf. Ser. IOP Publ. 2021, 1948, 012011. [Google Scholar] [CrossRef]
  19. Milan, A.; Rezatofighi, S.H.; Dick, A.; Reid, I.; Schindler, K. Online multi-target tracking using recurrent neural networks. In Proceedings of the AAAI Conference on Artificial Intelligence, San Francisco, CA, USA, 4–9 February 2017; Volume 31. [Google Scholar]
  20. Tian, Y.; Dehghan, A.; Shah, M. On detection, data association and segmentation for multi-target tracking. IEEE Trans. Pattern Anal. Mach. Intell. 2018, 41, 2146–2160. [Google Scholar] [CrossRef]
  21. Ullah, M.; Alaya Cheikh, F. A directed sparse graphical model for multi-target tracking. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, Salt Lake City, UT, USA, 18 June 2018; pp. 1816–1823. [Google Scholar]
  22. Mousavi, H.; Nabi, M.; Kiani, H.; Perina, A.; Murino, V. Crowd motion monitoring using tracklet-based commotion measure. In Proceedings of the 2015 IEEE International Conference on Image Processing (ICIP), Québec City, QC, Canada, 27–30 September 2015; pp. 2354–2358. [Google Scholar]
  23. Butt, A.A.; Collins, R.T. Multiple target tracking using frame triplets. In Proceedings of the Asian Conference on Computer Vision, Daejeon, Korea, 5–9 November 2012; Springer: Berlin/Heidelberg, Geramny, 2012; pp. 163–176. [Google Scholar]
  24. Wei, J.; Yang, M.; Liu, F. Learning spatio-temporal information for multi-object tracking. IEEE Access 2017, 5, 3869–3877. [Google Scholar] [CrossRef]
  25. Rodriguez, P.; Wiles, J.; Elman, J.L. A recurrent neural network that learns to count. Connect. Sci. 1999, 11, 5–40. [Google Scholar] [CrossRef]
  26. Lee, H.; Grosse, R.; Ranganath, R.; Ng, A.Y. Convolutional deep belief networks for scalable unsupervised learning of hierarchical representations. In Proceedings of the 26th Annual International Conference on Machine Learning, Montreal, QC, Canada, 14–18 June 2009; pp. 609–616. [Google Scholar]
  27. Simonyan, K.; Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv 2014, arXiv:1409.1556. [Google Scholar]
  28. Sun, S.; Akhtar, N.; Song, H.; Mian, A.; Shah, M. Deep affinity network for multiple object tracking. IEEE Trans. Pattern Anal. Mach. Intell. 2019, 43, 104–119. [Google Scholar] [CrossRef]
  29. Zhao, D.; Fu, H.; Xiao, L.; Wu, T.; Dai, B. Multi-object tracking with correlation filter for autonomous vehicle. Sensors 2018, 18, 2004. [Google Scholar] [CrossRef]
  30. Khan, G.; Tariq, Z.; Khan, M.U.G. Multi-person tracking based on faster R-CNN and deep appearance features. In Visual Object Tracking with Deep Neural Networks; IntechOpen: London, UK, 2019. [Google Scholar] [CrossRef]
  31. Liang, C.; Zhang, Z.; Lu, Y.; Zhou, X.; Li, B.; Ye, X.; Zou, J. Rethinking the competition between detection and ReID in Multi-Object Tracking. arXiv 2020, arXiv:2010.12138. [Google Scholar]
  32. Zhu, J.; Yang, H.; Liu, N.; Kim, M.; Zhang, W.; Yang, M.H. Online multi-object tracking with dual matching attention networks. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 366–382. [Google Scholar]
  33. Bewley, A.; Ge, Z.; Ott, L.; Ramos, F.; Upcroft, B. Simple online and realtime tracking. In Proceedings of the 2016 IEEE International Conference on Image Processing (ICIP), Phoenix, AZ, USA, 25–28 September 2016; pp. 3464–3468. [Google Scholar]
  34. Bochinski, E.; Senst, T.; Sikora, T. Extending IOU based multi-object tracking by visual information. In Proceedings of the 2018 15th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Auckland, New Zealand, 27–30 November 2018; pp. 1–6. [Google Scholar]
  35. Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A.N.; Kaiser, L.; Polosukhin, I. Attention is all you need. arXiv 2017, arXiv:1706.03762. [Google Scholar]
  36. Wang, F.; Jiang, M.; Qian, C.; Yang, S.; Li, C.; Zhang, H.; Wang, X.; Tang, X. Residual attention network for image classification. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21 July 2017; pp. 3156–3164. [Google Scholar]
  37. Hu, J.; Shen, L.; Sun, G. Squeeze-and-excitation networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18 June 2018; pp. 7132–7141. [Google Scholar]
  38. Woo, S.; Park, J.; Lee, J.Y.; Kweon, I.S. Cbam: Convolutional block attention module. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 3–19. [Google Scholar]
  39. You, Q.; Jin, H.; Wang, Z.; Fang, C.; Luo, J. Image captioning with semantic attention. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Amsterdam, The Netherlands, 8–16 October 2016; pp. 4651–4659. [Google Scholar]
  40. Wang, G.; Wang, Y.; Zhang, H.; Gu, R.; Hwang, J.N. Exploit the connectivity: Multi-object tracking with trackletnet. In Proceedings of the 27th ACM International Conference on Multimedia, Chengdu, China, 20–24 October 2019; pp. 482–490. [Google Scholar]
  41. Ning, G.; Zhang, Z.; Huang, C.; Ren, X.; Wang, H.; Cai, C.; He, Z. Spatially supervised recurrent convolutional neural networks for visual object tracking. In Proceedings of the 2017 IEEE International Symposium on Circuits and Systems (ISCAS), Baltimore, MD, USA, 28–31 May 2017; pp. 1–4. [Google Scholar]
  42. Fagot-Bouquet, L.; Audigier, R.; Dhome, Y.; Lerasle, F. Improving multi-frame data association with sparse representations for robust near-online multi-object tracking. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 8–16 October 2016; Springer: Cham, Switzerland, 2016; pp. 774–790. [Google Scholar]
  43. Zamir, A.R.; Dehghan, A.; Shah, M. Gmcp-tracker: Global multi-object tracking using generalized minimum clique graphs. In Proceedings of the European Conference on Computer Vision, Florence, Italy, 7–13 October 2012; Springer: Berlin/Heidelberg, Geramny, 2012; pp. 343–356. [Google Scholar]
  44. Ray, K.S.; Chakraborty, S. An efficient approach for object detection and tracking of objects in a video with variable background. arXiv 2017, arXiv:1706.02672. [Google Scholar]
  45. Kutschbach, T.; Bochinski, E.; Eiselein, V.; Sikora, T. Sequential sensor fusion combining probability hypothesis density and kernelized correlation filters for multi-object tracking in video data. In Proceedings of the 2017 14th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Lecce, Italy, 29 August–1 September 2017; pp. 1–5. [Google Scholar]
  46. Xiang, Y.; Alahi, A.; Savarese, S. Learning to track: Online multi-object tracking by decision making. In Proceedings of the IEEE International Conference on Computer Vision, Santiago, Chile, 7 December 2015; pp. 4705–4713. [Google Scholar]
  47. Williams, J.L. Marginal multi-Bernoulli filters: RFS derivation of MHT, JIPDA, and association-based MeMBer. IEEE Trans. Aerosp. Electron. Syst. 2015, 51, 1664–1687. [Google Scholar] [CrossRef]
  48. García-Fernández, Á.F.; Williams, J.L.; Granström, K.; Svensson, L. Poisson multi-Bernoulli mixture filter: Direct derivation and implementation. IEEE Trans. Aerosp. Electron. Syst. 2018, 54, 1883–1901. [Google Scholar] [CrossRef]
  49. Scheidegger, S.; Benjaminsson, J.; Rosenberg, E.; Krishnan, A.; Granström, K. Mono-camera 3d multi-object tracking using deep learning detections and pmbm filtering. In Proceedings of the 2018 IEEE Intelligent Vehicles Symposium (IV), Changshu, Suzhou, China, 26–30 June 2018; pp. 433–440. [Google Scholar]
  50. Li, B.; Wu, W.; Wang, Q.; Zhang, F.; Xing, J.; Yan, J. Siamrpn++: Evolution of Siamese visual tracking with very deep networks. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, CA, USA, 16–20 June 2019; pp. 4282–4291. [Google Scholar]
  51. Ren, L.; Lu, J.; Wang, Z.; Tian, Q.; Zhou, J. Collaborative deep reinforcement learning for multi-object tracking. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 586–602. [Google Scholar]
  52. Zhang, Z.; Wu, J.; Zhang, X.; Zhang, C. Multi-target, multi-camera tracking by hierarchical clustering: Recent progress on dukemtmc project. arXiv 2017, arXiv:1712.09531. [Google Scholar]
  53. Sanchez-Matilla, R.; Poiesi, F.; Cavallaro, A. Online multi-target tracking with strong and weak detections. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 8–16 October 2016; Springer: Cham, Switzerland, 2016; pp. 84–99. [Google Scholar]
  54. Milan, A.; Leal-Taixé, L.; Schindler, K.; Reid, I. Joint tracking and segmentation of multiple targets. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7 June 2015; pp. 5397–5406. [Google Scholar]
  55. Weng, X.; Kitani, K. A baseline for 3d multi-object tracking. arXiv 2019, arXiv:1907.03961. [Google Scholar]
  56. Yu, E.; Li, Z.; Han, S.; Wang, H. RelationTrack: Relation-aware Multiple Object Tracking with Decoupled Representation. arXiv 2021, arXiv:2105.04322. [Google Scholar]
  57. Voigtlaender, P.; Krause, M.; Osep, A.; Luiten, J.; Sekar, B.B.G.; Geiger, A.; Leibe, B. Mots: Multi-object tracking and segmentation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, CA, USA, 20 June 2019; pp. 7942–7951. [Google Scholar]
  58. Chu, Q.; Ouyang, W.; Li, H.; Wang, X.; Liu, B.; Yu, N. Online multi-object tracking using CNN-based single object tracker with spatial-temporal attention mechanism. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22 October 2017; pp. 4836–4845. [Google Scholar]
  59. Tang, S.; Andres, B.; Andriluka, M.; Schiele, B. Subgraph decomposition for multi-target tracking. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7 June 2015; pp. 5033–5041. [Google Scholar]
  60. Bochinski, E.; Eiselein, V.; Sikora, T. High-speed tracking-by-detection without using image information. In Proceedings of the 2017 14th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Lecce, Italy, 29 August–1 September 2017; pp. 1–6. [Google Scholar]
  61. Shin, J.; Kim, H.; Kim, D.; Paik, J. Fast and robust object tracking using tracking failure detection in kernelized correlation filter. Appl. Sci. 2020, 10, 713. [Google Scholar] [CrossRef]
  62. Sharma, S.; Ansari, J.A.; Murthy, J.K.; Krishna, K.M. Beyond pixels: Leveraging geometry and shape cues for online multi-object tracking. In Proceedings of the 2018 IEEE International Conference on Robotics and Automation (ICRA), Brisbane, Australia, 21–25 May 2018; pp. 3508–3515. [Google Scholar]
  63. Keuper, M.; Tang, S.; Andres, B.; Brox, T.; Schiele, B. Motion segmentation and multiple object tracking by correlation co-clustering. IEEE Trans. Pattern Anal. Mach. Intell. 2018, 42, 140–153. [Google Scholar] [CrossRef]
  64. Chen, L.; Ren, M. Multi-appearance segmentation and extended 0–1 programming for dense small object tracking. PLoS ONE 2018, 13, e0206168. [Google Scholar] [CrossRef] [PubMed]
  65. Ruchay, A.; Kober, V.; Chernoskulov, I. Real-time tracking of multiple objects with locally adaptive correlation filters. In Proceedings of the Information Technology and Nanotechnology 2017, Samara, Russia, 25–27 April 2017; pp. 214–218. [Google Scholar]
  66. Yoon, Y.C.; Kim, D.Y.; Song, Y.M.; Yoon, K.; Jeon, M. Online multiple pedestrians tracking using deep temporal appearance matching association. Inf. Sci. 2021, 561, 326–351. [Google Scholar] [CrossRef]
  67. Xiang, J.; Zhang, G.; Hou, J. Online multi-object tracking based on feature representation and Bayesian filtering within a deep learning architecture. IEEE Access 2019, 7, 27923–27935. [Google Scholar] [CrossRef]
  68. Gan, W.; Wang, S.; Lei, X.; Lee, M.S.; Kuo, C.C.J. Online CNN-based multiple object tracking with enhanced model updates and identity association. Signal Process. Image Commun. 2018, 66, 95–102. [Google Scholar] [CrossRef]
  69. Kampker, A.; Sefati, M.; Rachman, A.S.A.; Kreisköther, K.; Campoy, P. Towards Multi-Object Detection and Tracking in Urban Scenario under Uncertainties. In Proceedings of the International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS), Funchal, Madeira, Portugal, 16–18 March 2018; pp. 156–167. [Google Scholar]
  70. Wang, Z.; Zheng, L.; Liu, Y.; Wang, S. Towards real-time multi-object tracking. arXiv 2019, arXiv:1909.12605. [Google Scholar]
  71. Baisa, N.L. Online multi-object visual tracking using a GM-PHD filter with deep appearance learning. In Proceedings of the 2019 22th International Conference on Information Fusion (FUSION), Ottawa, ON, Canada, 2–5 July 2019; pp. 1–8. [Google Scholar]
  72. Ju, J.; Kim, D.; Ku, B.; Han, D.K.; Ko, H. Online multi-object tracking with efficient track drift and fragmentation handling. JOSA A 2017, 34, 280–293. [Google Scholar] [CrossRef] [PubMed]
  73. Yoon, Y.C.; Song, Y.M.; Yoon, K.; Jeon, M. Online multi-object tracking using selective deep appearance matching. In Proceedings of the 2018 IEEE International Conference on Consumer Electronics-Asia (ICCE-Asia), Jeju, Korea, 24–26 June 2018; pp. 206–212. [Google Scholar]
  74. Bae, S.H.; Yoon, K.J. Confidence-based data association and discriminative deep appearance learning for robust online multi-object tracking. IEEE Trans. Pattern Anal. Mach. Intell. 2017, 40, 595–610. [Google Scholar] [CrossRef]
  75. KC, A.K.; Jacques, L.; De Vleeschouwer, C. Discriminative and efficient label propagation on complementary graphs for multi-object tracking. IEEE Trans. Pattern Anal. Mach. Intell. 2016, 39, 61–74. [Google Scholar]
  76. Leal-Taixé, L.; Canton-Ferrer, C.; Schindler, K. Learning by tracking: Siamese CNN for robust target association. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, Las Vegas, NV, USA, 27 June 2016; pp. 33–40. [Google Scholar]
  77. Jiang, X.; Fang, Z.; Xiong, N.N.; Gao, Y.; Huang, B.; Zhang, J.; Yu, L.; Harrington, P. Data fusion-based multi-object tracking for unconstrained visual sensor networks. IEEE Access 2018, 6, 13716–13728. [Google Scholar] [CrossRef]
  78. Weng, X.; Yuan, Y.; Kitani, K. PTP: Parallelized Tracking and Prediction with Graph Neural Networks and Diversity Sampling. IEEE Robot. Autom. Lett. 2021, 6, 4640–4647. [Google Scholar] [CrossRef]
  79. Le, Q.C.; Conte, D.; Hidane, M. Online multiple view tracking: Targets association across cameras. In Proceedings of the 6th Workshop on Activity Monitoring by Multiple Distributed Sensing (AMMDS 2018), Newcastle upon Tyne, UK, 6 September 2018. [Google Scholar]
  80. Wu, C.W.; Zhong, M.T.; Tsao, Y.; Yang, S.W.; Chen, Y.K.; Chien, S.Y. Track-clustering error evaluation for track-based multi-camera tracking system employing human re-identification. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, Honolulu, HI, USA, 21 July 2017; pp. 1–9. [Google Scholar]
  81. Kieritz, H.; Becker, S.; Hübner, W.; Arens, M. Online multi-person tracking using integral channel features. In Proceedings of the 2016 13th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Colorado Springs, CO, USA, 23 August 2016; pp. 122–130. [Google Scholar]
  82. Scheel, A.; Knill, C.; Reuter, S.; Dietmayer, K. Multi-sensor multi-object tracking of vehicles using high-resolution radars. In Proceedings of the 2016 IEEE Intelligent Vehicles Symposium (IV), Gotenburg, Sweden, 19–22 June 2016; pp. 558–565. [Google Scholar]
  83. Schulter, S.; Vernaza, P.; Choi, W.; Chandraker, M. Deep network flow for multi-object tracking. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21 July 2017; pp. 6951–6960. [Google Scholar]
  84. Chen, L.; Ai, H.; Zhuang, Z.; Shang, C. Real-time multiple people tracking with deeply learned candidate selection and person re-identification. In Proceedings of the 2018 IEEE International Conference on Multimedia and Expo (ICME), San Diego, CA, USA, 23–27 July 2018; pp. 1–6. [Google Scholar]
  85. Son, J.; Baek, M.; Cho, M.; Han, B. Multi-object tracking with quadruplet convolutional neural networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21 July 2017; pp. 5620–5629. [Google Scholar]
  86. Lee, B.; Erdenee, E.; Jin, S.; Nam, M.Y.; Jung, Y.G.; Rhee, P.K. Multi-class multi-object tracking using changing point detection. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 8–16 October 2016; Springer: Cham, Switzerland, 2016; pp. 68–83. [Google Scholar]
  87. Xu, Y.; Ban, Y.; Delorme, G.; Gan, C.; Rus, D.; Alameda-Pineda, X. TransCenter: Transformers with Dense Queries for Multiple-Object Tracking. arXiv 2021, arXiv:2103.15145. [Google Scholar]
  88. Sun, P.; Jiang, Y.; Zhang, R.; Xie, E.; Cao, J.; Hu, X.; Kong, T.; Yuan, Z.; Wang, C.; Luo, P. Transtrack: Multiple-object tracking with transformer. arXiv 2020, arXiv:2012.15460. [Google Scholar]
  89. Zeng, F.; Dong, B.; Wang, T.; Chen, C.; Zhang, X.; Wei, Y. MOTR: End-to-End Multiple-Object Tracking with TRansformer. arXiv 2021, arXiv:2105.03247. [Google Scholar]
  90. Zhang, J.; Sun, J.; Wang, J.; Yue, X.G. Visual object tracking based on residual network and cascaded correlation filters. J. Ambient. Intell. Humaniz. Comput. 2020, 12, 8427–8440. [Google Scholar] [CrossRef]
  91. Dang, L.M.; Kyeong, S.; Li, Y.; Wang, H.; Nguyen, T.N.; Moon, H. Deep Learning-based Sewer Defect Classification for Highly Imbalanced Dataset. Comput. Ind. Eng. 2021, 161, 107630. [Google Scholar] [CrossRef]
  92. Kim, C.; Li, F.; Rehg, J.M. Multi-object tracking with neural gating using bilinear lstm. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 200–215. [Google Scholar]
  93. Azimi, S.M.; Kraus, M.; Bahmanyar, R.; Reinartz, P. Multiple Pedestrians and Vehicles Tracking in Aerial Imagery Using a Convolutional Neural Network. Remote Sens. 2021, 13, 1953. [Google Scholar] [CrossRef]
  94. Zhou, Y.F.; Xie, K.; Zhang, X.Y.; Wen, C.; He, J.B. Efficient Traffic Accident Warning Based on Unsupervised Prediction Framework. IEEE Access 2021, 9, 69100–69113. [Google Scholar] [CrossRef]
  95. Zhang, D.; Zheng, Z.; Wang, T.; He, Y. HROM: Learning High-Resolution Representation and Object-Aware Masks for Visual Object Tracking. Sensors 2020, 20, 4807. [Google Scholar] [CrossRef] [PubMed]
  96. Tang, Y.; Liu, Y.; Huang, H.; Liu, J.; Xie, W. A Scale-Adaptive Particle Filter Tracking Algorithm Based on Offline Trained Multi-Domain Deep Network. IEEE Access 2020, 8, 31970–31982. [Google Scholar] [CrossRef]
  97. Wen, L.; Du, D.; Cai, Z.; Lei, Z.; Chang, M.C.; Qi, H.; Lim, J.; Yang, M.H.; Lyu, S. UA-DETRAC: A new benchmark and protocol for multi-object detection and tracking. Comput. Vis. Image Underst. 2020, 193, 102907. [Google Scholar] [CrossRef]
  98. Hidayatullah, P.; Mengko, T.L.; Munir, R.; Barlian, A. Bull Sperm Tracking and Machine Learning-Based Motility Classification. IEEE Access 2021, 9, 61159–61170. [Google Scholar] [CrossRef]
  99. Xia, H.; Zhang, Y.; Yang, M.; Zhao, Y. Visual tracking via deep feature fusion and correlation filters. Sensors 2020, 20, 3370. [Google Scholar] [CrossRef] [PubMed]
  100. Madasamy, K.; Shanmuganathan, V.; Kandasamy, V.; Lee, M.Y.; Thangadurai, M. OSDDY: Embedded system-based object surveillance detection system with small drone using deep YOLO. EURASIP J. Image Video Process. 2021, 2021, 1–14. [Google Scholar] [CrossRef]
  101. Dao, M.Q.; Frémont, V. A two-stage data association approach for 3D Multi-object Tracking. Sensors 2021, 21, 2894. [Google Scholar] [CrossRef] [PubMed]
  102. Yin, Y.; Feng, X.; Wu, H. Learning for Graph Matching based Multi-object Tracking in Auto Driving. J. Phys. Conf. Ser. IOP Publ. 2021, 1871, 012152. [Google Scholar] [CrossRef]
  103. Song, S.; Li, Y.; Huang, Q.; Li, G. A New Real-Time Detection and Tracking Method in Videos for Small Target Traffic Signs. Appl. Sci. 2021, 11, 3061. [Google Scholar] [CrossRef]
  104. Padmaja, B.; Myneni, M.B.; Patro, E.K.R. A comparison on visual prediction models for MAMO (multi activity-multi object) recognition using deep learning. J. Big Data 2020, 7, 1–15. [Google Scholar] [CrossRef]
  105. Chou, Y.S.; Wang, C.Y.; Lin, S.D.; Liao, H.Y.M. How Incompletely Segmented Information Affects Multi-Object Tracking and Segmentation (MOTS). In Proceedings of the 2020 IEEE International Conference on Image Processing (ICIP), Abu Dhabi, United Arab Emirates, 25–28 October 2020; pp. 2086–2090. [Google Scholar]
  106. Zhou, Y.; Cai, Z.; Zhu, Y.; Yan, J. Automatic ship detection in SAR Image based on Multi-scale Faster R-CNN. J. Phys. Conf. Ser. IOP Publ. 2020, 1550, 042006. [Google Scholar] [CrossRef]
  107. Liu, Y.; Zhang, S.; Li, Z.; Zhang, Y. Abnormal Behavior Recognition Based on Key Points of Human Skeleton. IFAC PapersOnLine 2020, 53, 441–445. [Google Scholar] [CrossRef]
  108. Xie, Y.; Shen, J.; Wu, C. Affine Geometrical Region CNN for Object Tracking. IEEE Access 2020, 8, 68638–68648. [Google Scholar] [CrossRef]
  109. Shao, Q.; Hu, J.; Wang, W.; Fang, Y.; Xue, T.; Qi, J. Location Instruction-Based Motion Generation for Sequential Robotic Manipulation. IEEE Access 2020, 8, 26094–26106. [Google Scholar] [CrossRef]
  110. Nobis, F.; Geisslinger, M.; Weber, M.; Betz, J.; Lienkamp, M. A deep learning-based radar and camera sensor fusion architecture for object detection. In Proceedings of the 2019 Sensor Data Fusion: Trends, Solutions, Applications (SDF), Bonn, Germany, 15–17 October 2019; pp. 1–7. [Google Scholar]
  111. Wu, Q.; Yan, Y.; Liang, Y.; Liu, Y.; Wang, H. DSNet: Deep and shallow feature learning for efficient visual tracking. In Proceedings of the Asian Conference on Computer Vision, Perth, Australia, 2–6 December 2018; Springer: Cham, Switzerland, 2018; pp. 119–134. [Google Scholar]
  112. Zhu, W.; Yu, S.; Zheng, X.; Wu, Y. Fine-grained Vehicle Classification Technology Based on Fusion of Multi-convolutional Neural Networks. Sens. Mater. 2019, 31, 569–578. [Google Scholar] [CrossRef]
  113. Avola, D.; Cinque, L.; Diko, A.; Fagioli, A.; Foresti, G.L.; Mecca, A.; Pannone, D.; Piciarelli, C. MS-Faster R-CNN: Multi-Stream Backbone for Improved Faster R-CNN Object Detection and Aerial Tracking from UAV Images. Remote Sens. 2021, 13, 1670. [Google Scholar] [CrossRef]
  114. Zhou, X.; Xu, X.; Liang, W.; Zeng, Z.; Yan, Z. Deep Learning Enhanced Multi-Target Detection for End-Edge-Cloud Surveillance in Smart IoT. IEEE Internet Things J. 2021, 8, 12588–12596. [Google Scholar] [CrossRef]
  115. Hossain, S.; Lee, D.j. Deep learning-based real-time multiple-object detection and tracking from aerial imagery via a flying robot with GPU-based embedded devices. Sensors 2019, 19, 3371. [Google Scholar] [CrossRef] [PubMed]
  116. He, Z.; Li, J.; Liu, D.; He, H.; Barber, D. Tracking by animation: Unsupervised learning of multi-object attentive trackers. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, CA, USA, 15 June 2019; pp. 1318–1327. [Google Scholar]
  117. Lee, S.; Kim, E. Multiple object tracking via feature pyramid Siamese networks. IEEE Access 2018, 7, 8181–8194. [Google Scholar] [CrossRef]
  118. Dike, H.U.; Zhou, Y. A Robust Quadruplet and Faster Region-Based CNN for UAV Video-Based Multiple Object Tracking in Crowded Environment. Electronics 2021, 10, 795. [Google Scholar] [CrossRef]
  119. Gómez-Silva, M.J.; Escalera, A.D.L.; Armingol, J.M. Deep Learning of Appearance Affinity for Multi-Object Tracking and Re-Identification: A Comparative View. Electronics 2020, 9, 1757. [Google Scholar] [CrossRef]
  120. Li, J.; Zhan, W.; Hu, Y.; Tomizuka, M. Generic tracking and probabilistic prediction framework and its application in autonomous driving. IEEE Trans. Intell. Transp. Syst. 2019, 21, 3634–3649. [Google Scholar] [CrossRef]
  121. Lv, X.; Dai, C.; Chen, L.; Lang, Y.; Tang, R.; Huang, Q.; He, J. A robust real-time detecting and tracking framework for multiple kinds of unmarked object. Sensors 2020, 20, 2. [Google Scholar] [CrossRef]
  122. Xu, T.; Feng, Z.H.; Wu, X.J.; Kittler, J. Joint group feature selection and discriminative filter learning for robust visual object tracking. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Seoul, Korea, 27 October 2019; pp. 7950–7960. [Google Scholar]
  123. Shahbazi, M.; Simeonova, S.; Lichti, D.; Wang, J. Vehicle Tracking and Speed Estimation from Unmanned Aerial Videos. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2020, 43, 623–630. [Google Scholar] [CrossRef]
  124. Pegoraro, J.; Rossi, M. Real-time People Tracking and Identification from Sparse mm-Wave Radar Point-clouds. IEEE Access 2021, 4, 78504–78520. [Google Scholar] [CrossRef]
  125. Liu, K. Deep Associated Elastic Tracker for Intelligent Traffic Intersections. In Proceedings of the 2nd International Workshop on Challenges in Artificial Intelligence and Machine Learning for Internet of Things, Asia, Seoul, 16 November 2020; pp. 55–61. [Google Scholar]
  126. Wen, A. Real-Time Panoramic Multi-Target Detection Based on Mobile Machine Vision and Deep Learning. J. Phys. Conf. Ser. IOP Publ. 2020, 1650, 032113. [Google Scholar] [CrossRef]
  127. Yosinski, J.; Clune, J.; Bengio, Y.; Lipson, H. How transferable are features in deep neural networks? arXiv 2014, arXiv:1411.1792. [Google Scholar]
  128. Xu, T.; Feng, Z.; Wu, X.J.; Kittler, J. Adaptive Channel Selection for Robust Visual Object Tracking with Discriminative Correlation Filters. Int. J. Comput. Vis. 2021, 129, 1359–1375. [Google Scholar] [CrossRef]
  129. Huang, W.; Zhou, X.; Dong, M.; Xu, H. Multiple objects tracking in the UAV system based on hierarchical deep high-resolution network. Multimed. Tools Appl. 2021, 80, 13911–13929. [Google Scholar] [CrossRef]
  130. Li, Y.; Wang, H.; Dang, L.M.; Nguyen, T.N.; Han, D.; Lee, A.; Jang, I.; Moon, H. A deep learning-based hybrid framework for object detection and recognition in autonomous driving. IEEE Access 2020, 8, 194228–194239. [Google Scholar] [CrossRef]
  131. Chen, C.; Zanotti Fragonara, L.; Tsourdos, A. Relation3DMOT: Exploiting Deep Affinity for 3D Multi-Object Tracking from View Aggregation. Sensors 2021, 21, 2113. [Google Scholar] [CrossRef]
  132. Wang, N.; Zhou, W.; Song, Y.; Ma, C.; Liu, W.; Li, H. Unsupervised deep representation learning for real-time tracking. Int. J. Comput. Vis. 2021, 129, 400–418. [Google Scholar] [CrossRef]
  133. Wu, L.; Xu, T.; Zhang, Y.; Wu, F.; Xu, C.; Li, X.; Wang, J. Multi-Channel Feature Dimension Adaption for Correlation Tracking. IEEE Access 2021, 9, 63814–63824. [Google Scholar] [CrossRef]
  134. Yang, Y.; Xing, W.; Zhang, S.; Gao, L.; Yu, Q.; Che, X.; Lu, W. Visual tracking with long-short term based correlation filter. IEEE Access 2020, 8, 20257–20269. [Google Scholar] [CrossRef]
  135. Mauri, A.; Khemmar, R.; Decoux, B.; Ragot, N.; Rossi, R.; Trabelsi, R.; Boutteau, R.; Ertaud, J.Y.; Savatier, X. Deep Learning for Real-Time 3D Multi-Object Detection, Localisation, and Tracking: Application to Smart Mobility. Sensors 2020, 20, 532. [Google Scholar] [CrossRef] [PubMed]
  136. Akhloufi, M.A.; Arola, S.; Bonnet, A. Drones chasing drones: Reinforcement learning and deep search area proposal. Drones 2019, 3, 58. [Google Scholar] [CrossRef]
  137. Voeikov, R.; Falaleev, N.; Baikulov, R. TTNet: Real-time temporal and spatial video analysis of table tennis. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops, Seattle, WA, USA, 14–16 June 2020; pp. 884–885. [Google Scholar]
  138. Jiang, M.; Hai, T.; Pan, Z.; Wang, H.; Jia, Y.; Deng, C. Multi-agent deep reinforcement learning for multi-object tracker. IEEE Access 2019, 7, 32400–32407. [Google Scholar] [CrossRef]
  139. Carion, N.; Massa, F.; Synnaeve, G.; Usunier, N.; Kirillov, A.; Zagoruyko, S. End-to-end object detection with transformers. In Proceedings of the European Conference on Computer Vision, Glasgow, UK, 23–28 August 2020; Springer: Cham, Switzerland, 2020; pp. 213–229. [Google Scholar]
  140. Belyaev, V.; Malysheva, A.; Shpilman, A. End-to-end Deep Object Tracking with Circular Loss Function for Rotated Bounding Box. In Proceedings of the 2019 IEEE XVI International Symposium "Problems of Redundancy in Information and Control Systems" (REDUNDANCY)m, Moscow, Russia, 21–25 October 2019; pp. 165–170. [Google Scholar]
  141. Milan, A.; Leal-Taixé, L.; Reid, I.; Roth, S.; Schindler, K. MOT16: A Benchmark for Multi-Object Tracking. arXiv 2016, arXiv:1603.00831. [Google Scholar]
  142. Geiger, A.; Lenz, P.; Urtasun, R. Are we ready for autonomous driving? the kitti vision benchmark suite. In Proceedings of the 2012 IEEE Conference on Computer Vision and Pattern Recognition, Providence, RI, USA, 16 June 2012; pp. 3354–3361. [Google Scholar]
  143. Stiefelhagen, R.; Bernardin, K.; Bowers, R.; Garofolo, J.; Mostefa, D.; Soundararajan, P. The CLEAR 2006 evaluation. In Proceedings of the International Evaluation Workshop on Classification of Events, Activities and Relationships, Southampton, UK, 6–7 April 2006; Springer: Berlin/Heidelberg, Geramny, 2006; pp. 1–44. [Google Scholar]
  144. Wu, H.; Han, W.; Wen, C.; Li, X.; Wang, C. 3D Multi-Object Tracking in Point Clouds Based on Prediction Confidence-Guided Data Association. IEEE Trans. Intell. Transp. Syst. 2021. early access. [Google Scholar] [CrossRef]
  145. Weng, X.; Wang, J.; Held, D.; Kitani, K. 3d multi-object tracking: A baseline and new evaluation metrics. In Proceedings of the 2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Las Vegas, NV, USA, 25–29 October 2020; pp. 10359–10366. [Google Scholar]
  146. Wang, S.; Cai, P.; Wang, L.; Liu, M. DiTNet: End-to-End 3D Object Detection and Track ID Assignment in Spatio-Temporal World. IEEE Robot. Autom. Lett. 2021, 6, 3397–3404. [Google Scholar] [CrossRef]
  147. Ristani, E.; Solera, F.; Zou, R.; Cucchiara, R.; Tomasi, C. Performance measures and a data set for multi-target, multi-camera tracking. In Proceedings of the European Conference on Computer Vision, Amsterdam, The Netherlands, 8–16 October 2016; Springer: Cham, Switzerland, 2016; pp. 17–35. [Google Scholar]
  148. Zhang, Y.; Wang, C.; Wang, X.; Zeng, W.; Liu, W. A simple baseline for multi-object tracking. arXiv 2020, arXiv:2004.01888. [Google Scholar]
  149. Dang, L.M.; Piran, M.; Han, D.; Min, K.; Moon, H. A survey on internet of things and cloud computing for healthcare. Electronics 2019, 8, 768. [Google Scholar] [CrossRef]

Figure 1. The explanation of the ID assignment method, which is one of the main concepts of MOT using the MOT15 benchmark dataset [8]. Objects in the current frame are first detected using the detector. The detected result is then fed into an MOT algorithm to assign the ID for each object.

Figure 1. The explanation of the ID assignment method, which is one of the main concepts of MOT using the MOT15 benchmark dataset [8]. Objects in the current frame are first detected using the detector. The detected result is then fed into an MOT algorithm to assign the ID for each object.

Electronics 10 02406 g001

Figure 2. The visualization of the object tracking for the next frame using the MOT algorithm on the MOT15 benchmark dataset [8]. Objects in the following frame are first detected. The detected result is then fed into the MOT algorithm to compare the objects from the current frame with the objects from the next frame. Finally, the IDs are assigned for each object in the next frame based on the current frame.

Figure 2. The visualization of the object tracking for the next frame using the MOT algorithm on the MOT15 benchmark dataset [8]. Objects in the following frame are first detected. The detected result is then fed into the MOT algorithm to compare the objects from the current frame with the objects from the next frame. Finally, the IDs are assigned for each object in the next frame based on the current frame.

Electronics 10 02406 g002

Figure 3. The number of published MOT papers yearly since 2012 that are discussed in this review.

Figure 3. The number of published MOT papers yearly since 2012 that are discussed in this review.

Electronics 10 02406 g003

Figure 4. The search methodology for this paper.

Figure 4. The search methodology for this paper.

Electronics 10 02406 g004

Figure 5. Description of a basic MOT process that includes (1) the detection of an object in frame t, (2) the exact position of the object is extracted and fed into an MOT algorithm, and (3) the object is tracked, and the object location at frame t+1 is predicted.

Figure 5. Description of a basic MOT process that includes (1) the detection of an object in frame t, (2) the exact position of the object is extracted and fed into an MOT algorithm, and (3) the object is tracked, and the object location at frame t+1 is predicted.

Electronics 10 02406 g005

Figure 6. Visualization of the occlusion for two objects (orange and green). The objects in frame 1 are not overlapping. The objects in frame 2 are slightly overlapped, which is called occlusion. For frame 3, the green object is almost fully occluded by the orange object.

Figure 6. Visualization of the occlusion for two objects (orange and green). The objects in frame 1 are not overlapping. The objects in frame 2 are slightly overlapped, which is called occlusion. For frame 3, the green object is almost fully occluded by the orange object.

Electronics 10 02406 g006

Figure 7. Example of the ID switch problem. The object in frame 1 and the object in frame 2 are considered to have the same id because they are in the tracklet. On the other hand, frame 3 is judged to contain a different object because, there, the object is outside of the tracklet, and thus a new id is given.

Figure 7. Example of the ID switch problem. The object in frame 1 and the object in frame 2 are considered to have the same id because they are in the tracklet. On the other hand, frame 3 is judged to contain a different object because, there, the object is outside of the tracklet, and thus a new id is given.

Electronics 10 02406 g007

Figure 8. Visualization of the LSTM architecture [10].

Figure 8. Visualization of the LSTM architecture [10].

Electronics 10 02406 g008

Figure 9. Main concept of the IoU tracker [34].

Figure 9. Main concept of the IoU tracker [34].

Electronics 10 02406 g009

Figure 10. The proposed detection and prediction system [51] in MOT15 benchmark [8].

Figure 10. The proposed detection and prediction system [51] in MOT15 benchmark [8].

Electronics 10 02406 g010

Figure 11. Computational cost minimization using the model [56] with the MOT15 benchmark [8].

Figure 11. Computational cost minimization using the model [56] with the MOT15 benchmark [8].

Electronics 10 02406 g011

Figure 12. Example of a model using appearance variations, drifting, and identity switching [31].

Figure 12. Example of a model using appearance variations, drifting, and identity switching [31].

Electronics 10 02406 g012

Figure 13. The model proposed in the paper of category distance and long occlusion handling [68] using the MOT15 Benchmark [8].

Figure 13. The model proposed in the paper of category distance and long occlusion handling [68] using the MOT15 Benchmark [8].

Electronics 10 02406 g013

Figure 14. A detection and target association model [70] in MOT15 benchmark [8], which compares Separate Detection and Embedding (SDE), two-stage model, and Joint Detection and Embedding (JDE).

Figure 14. A detection and target association model [70] in MOT15 benchmark [8], which compares Separate Detection and Embedding (SDE), two-stage model, and Joint Detection and Embedding (JDE).

Electronics 10 02406 g014

Figure 15. An example of a model of Tracklet association [77] with the MOT15 benchmark [8].

Figure 15. An example of a model of Tracklet association [77] with the MOT15 benchmark [8].

Electronics 10 02406 g015

Figure 16. The automatic detection learning model proposed by Son et al. [85] using the MOT15 benchmark [8].

Figure 16. The automatic detection learning model proposed by Son et al. [85] using the MOT15 benchmark [8].

Electronics 10 02406 g016

Figure 17. The categorization of MOT algorithms into six main categories, IoU, CNN, LSTM, attention, Siamese network, and Kalman filter.

Figure 17. The categorization of MOT algorithms into six main categories, IoU, CNN, LSTM, attention, Siamese network, and Kalman filter.

Electronics 10 02406 g017

Figure 18. MOT15 [8], MOT16 [141], MOT17, and KITTI [142] benchmark datasets.

Figure 18. MOT15 [8], MOT16 [141], MOT17, and KITTI [142] benchmark datasets.

Electronics 10 02406 g018

Figure 19. Notable MOT trends from the last three years (2019–2021).

Figure 19. Notable MOT trends from the last three years (2019–2021).

Electronics 10 02406 g019

Table 1. List of contributions from previous surveys on MOT.

Table 1. List of contributions from previous surveys on MOT.

ID Ref. Year Contributions
1 [9] 2021
  • Offers a comprehensive review of object detection models.

  • Shows the development trends of both object detection and tracking

  • Describes various comparative results for getting the best detector and tracker.

  • Categorizes deep learning based on object detection and tracking into three groups.

2 [10] 2020
  • Reviews the previous deep learning-based MOT research in the past 3 years

  • Divides previous papers into five main sections, which include detection, feature extraction and motion prediction, affinity computation, association/tracking, and other methods.

  • Shows the main MOT challenges

3 [11] 2020
  • Shows the key aspects in a multiple object tracking system.

  • Categorizes previous work according to various aspects, and explains the advances and drawbacks of each group.

  • Provides a discussion about the challenges of MOT research and some potential future directions.

4 [13] 2020
  • Reviews the past five years of multi-object tracking systems.

  • Compares the results of online MOTs and public datasets environment in the deep learning model.

  • Focuses mainly on deep-learning-based approaches

Table 2. Common MOT methods and their corresponding references.

Table 2. Common MOT methods and their corresponding references.

Methodology Deep Learning Algorithms + Networks Year
Appearance Learning Spatial Temporal Information + Template Matching [24] 2017
CNN + Appearnce Model [40] 2019
CNN + Compression Network [28] 2019
LSTM [41] 2017
Target appearance + Linear Subspace [42] 2016
Generalized Minimum Clique Graphs (GMCP) [43] 2012
Occlusion Handling CNN + FDH [44] 2017
CNN + Semantic Information [29] 2018
GMPHD [45] 2017
CNN + Template Matching + Optical Flow [46] 2015
Detection and Prediction CNN + Poisson Multi-Bernoulli Mixture (PMBM) Filter [47,48,49] 2018
Box regression + Siamese Region Proposal (SiamRPN) [50] 2019
CNN + Tracking-by-detection (TBD) + Reinforcement Learning [51] 2018
F-RCNN + MTC [52] 2017
Detector Confidence + PHDP [53] 2016
Segmentation + CRF [54] 2015
Computational Cost Minimization 3D CNN + Kalman Filter [55] 2019
CNN + Global Context Distancing (GCD) + Guided Transformer Encoder (GTE) [56] 2021
Segmentation + Single Convolutional Neural Network (SCNN) [57] 2019
spatial- temporal attention mechanism (STAM) + CNN [58] 2017
Subgraph Decomposition [59] 2015
Motion Variations TBD without Image information [60] 2017
CNN + kernelized filter [61] 2020
Pairwise Cost [62] 2018
CNN + Motion Segmentation [63,64] 2018
LAC filters + CNN [65] 2017
Appearance Variations, Drifting
and Identity Switching
CNN + Data Association [30] 2018
Joint inference network [66] 2021
cross correlation CNN + scale aware attention network [31] 2020
LSTM + Bayesian filtering network [67] 2019
CNN + LSTM + Attention network [32] 2018
CNN [4] 2017
Distance and Long Occlusions
Handling
CNN [68] 2018
CNN [69] 2018
Detection and Target Association Kalman Filter + Hungarian Algorithm [33] 2016
CNN [70] 2019
CNN + GMPHD [71] 2019
Affinity Appearance Learning [72] 2017
CNN [73] 2018
R-CNN [19] 2017
CNN + Online transfer learning [74] 2017
Spatial Temporal and Appearance Modeling [75] 2016
Siamese Network [76] 2016
Tracklet Association Visual Sensor Networks [77] 2018
GNN [78] 2021
CNN + decision maiking algothm [79] 2018
Single Camera Tracking + CNN [80] 2017
Fast Constrained Domain Sets [81] 2016
Sequential Monte Carlo (SMC) + Labeled Multi-Bernoulli (LMB) filter [82] 2016
Automatic Detection Learning CNN [83] 2017
Region-based Fully Convolutional Neural network (R-FCN) [84] 2018
Quadruplet Convolutional Neural Networks (QCNN) [85] 2017
CNN + Lucas-Kande Tracker (LKT) [86] 2016
Transformer CNN + Query Learning Networks (QLN) [87] 2021
CNN + GTE [56] 2021
CNN + query key [88] 2021
CNN + continuous query passing [89] 2021

Table 3. The previous state-of-the-art models on the KITTI benchmark.

Table 3. The previous state-of-the-art models on the KITTI benchmark.

Name Year Class MOTA MOTP IDF1 IDS MT ML FR Tracking Time(s) fps Ref.
2018 32.7 38.9 26.2 19.6 0.09 [29]
2018 car class 80.4 81.3 121 62.8 6.2 613 73 [49]
2019 car class 83.34 85.23 10 65.85 11.54 222 214.7 [55]
RRC-IIITH 2018 84.24 85.73 468 73.23 2.77 944 [62]
2017 67.36 78.79 65 53.81 9.45 574 [83]
PC3T 2021 88.8 84.37 208 80 8.31 369 222 [144]
DiTNet 2021 84.62 84.18 19 74.15 12.92 196 0.01 [146]
AB3DMOT 2021 car class 86.24 78.43 0 15 [145]

Table 4. Organized issues by trends in MOT papers from the past 3 years.

Table 4. Organized issues by trends in MOT papers from the past 3 years.

Category Issue 2019 2020 2021
Affinity The number of papers is increasing 6% 10% 22%
Appearance learning
  • An important factor in identifying the id information of the object.

  • A lot of relevant papers.

17% 11% 9%
Appearance Variations, Drifting, and Identity Switching 17% 16% 9%
Detection prediction
  • Detection performance affects the tracking

  • Most of the papers attempted to make strong detectors for the tracking systems

18% 32% 18%
Detection and target associations 12% 11% 4%
Automatic Detection Learning 6% 5% -
Transformer Models including deep learning and transformers have been published recently - - 17%

Publisher's Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Real-time* Multiple Object Tracking (Mot) for Autonomous Navigation

Source: https://www.mdpi.com/2079-9292/10/19/2406/htm

0 Response to "Real-time* Multiple Object Tracking (Mot) for Autonomous Navigation"

إرسال تعليق

Iklan Atas Artikel

Iklan Tengah Artikel 1

Iklan Tengah Artikel 2

Iklan Bawah Artikel
